DSTIKE Deauther Watch Z II - ESP8266 + Atmega32u4
Tracked worldwide shipping
Ships daily except Saturday
Estimated delivery 7–14 days
What is it?
The Deauther Watch Z II is a refined successor to the original Watch Z. It combines a portable 2.4GHz wireless evaluation interface, OLED display, external antenna, expandable GPIO header, and programmable USB HID automation in a compact wearable design. It is designed for makers, developers, educators, and security researchers working on wireless protocol learning, authorized network evaluation, hardware expansion, and repeatable computer automation.
Why did we make it?
The Watch Z II focuses on practical hardware improvements while keeping the familiar Watch Z form factor. The charging indicator is now easier to see, the control layout has been simplified, the expansion header is more convenient for future modules, and the new DIP switch provides quick access to a larger automation-script library.
What’s New in Z II?

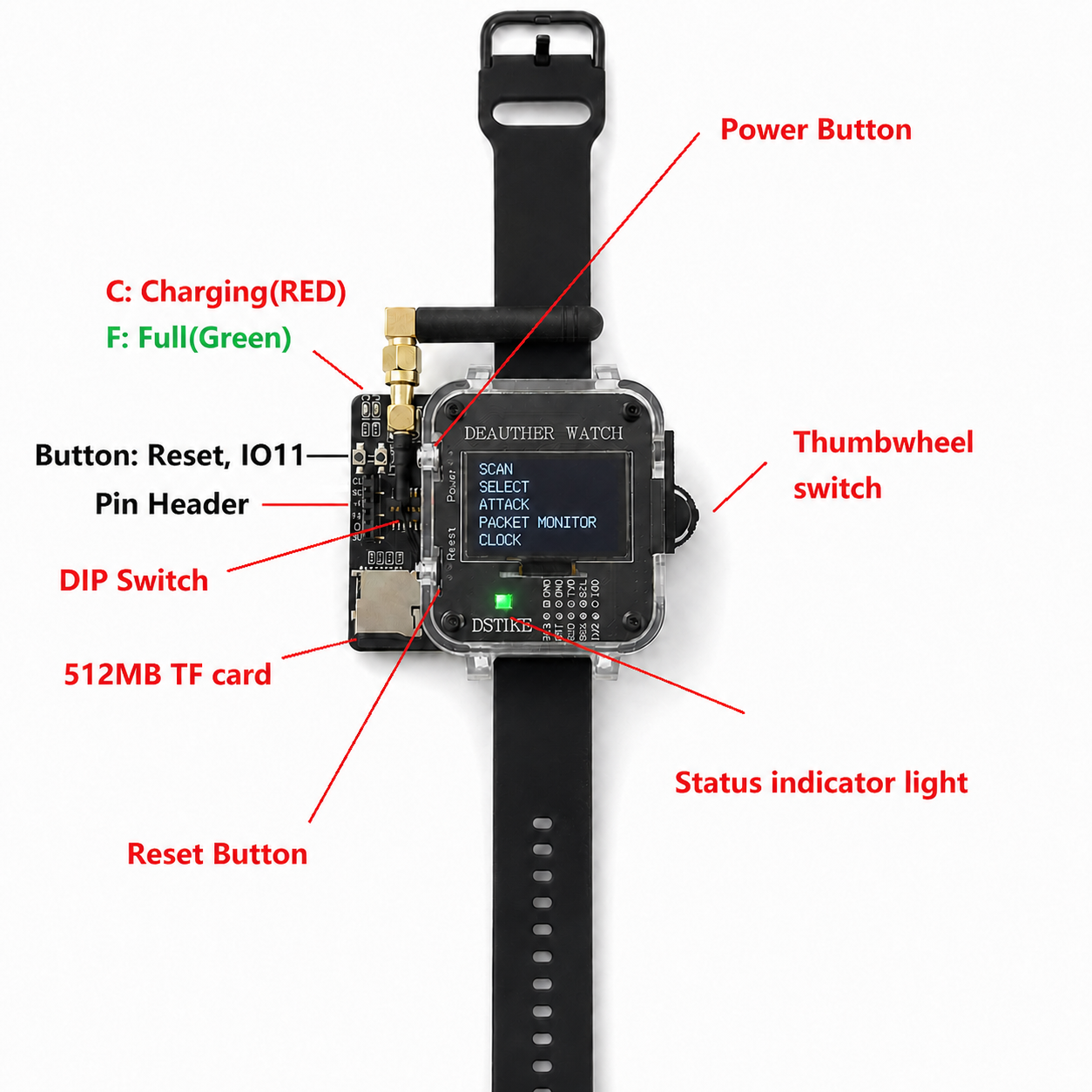

Easier-to-see charging indicator

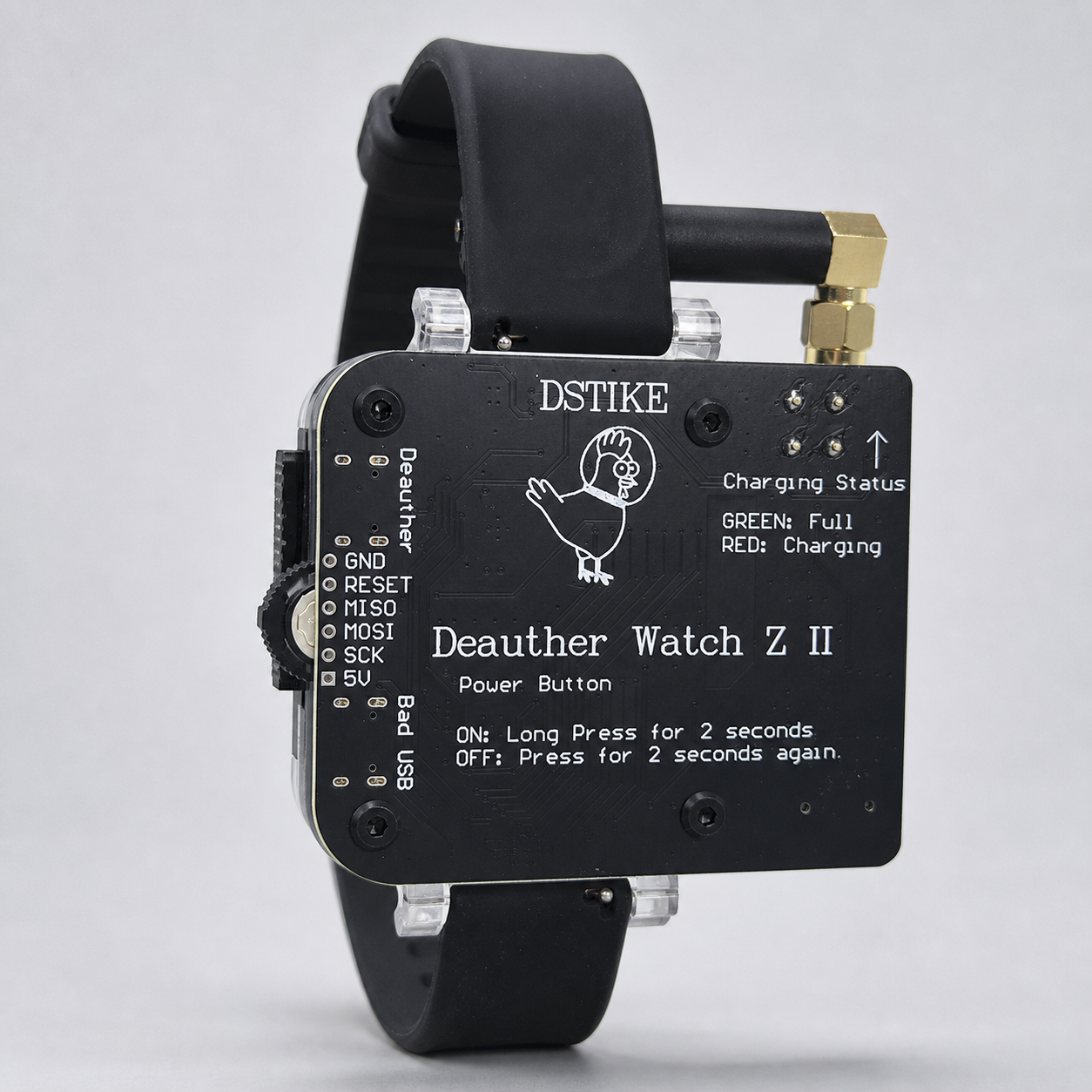

The charging-status LEDs have been moved next to the antenna, making the battery status easier to check at a glance:
- Red: Charging
- Green: Fully charged
Simplified button layout
The four metal buttons used on the previous model have been replaced with two compact tactile buttons:
- RESET
- IO11
This creates a cleaner control layout while retaining essential hardware access.
Expansion-ready pin header
The female expansion header provides the following connections:
- SDA
- SCL
- IO4
- IO12
- GND
- 3V3
These pins make it easier to connect compatible I²C or GPIO modules for future development, including optional infrared-sensor projects. Optional modules and related firmware are not included unless otherwise specified.
Up to 64 automation profiles
The new DIP switch allows users to select from up to 64 user-prepared USB HID automation profiles. This makes it convenient to organize different development, testing, presentation, configuration, and repetitive workflow scripts without constantly replacing files.
Key Features
- Portable 2.4GHz wireless evaluation platform
- OLED menu interface
- Network scanning and selection
- Packet-monitoring tools
- Authorized wireless-resilience testing workflows
- Built-in clock function
- Thumbwheel menu navigation
- External antenna
- USB HID workflow automation
- Up to 64 selectable script profiles
- DIP-switch profile selection
- RESET and IO11 hardware buttons
- Expansion header for I²C and GPIO modules
- Charging indicator positioned beside the antenna
- Compact wearable form factor
- Designed for makers, developers, and authorized security research
Technical Specifications
| Item | Description |
|---|---|
| Wireless band | 2.4GHz Wi-Fi |
| Display | 1.3' OLED |
| Main control | Thumbwheel switch |
| Hardware buttons | RESET and IO11 |
| Antenna | External 3dBi antenna |
| Charging indicator | Red while charging, green when fully charged |
| Automation interface | USB HID workflow automation |
| Script selection | Up to 64 profiles via DIP switch |
| Expansion pins | SDA, SCL, IO4, IO12, GND, 3V3 |
| Expansion support | Compatible I²C and GPIO development modules |
| Form factor | Wearable development watch |
Intended Applications
- Wireless protocol education
- Authorized network evaluation
- Packet-monitoring experiments
- Embedded-system development
- I²C and GPIO module prototyping
- USB HID workflow automation
- Computer setup and configuration tasks
- Demonstrations and maker projects
Important Notice
The Deauther Watch Z II is intended for education, development, laboratory research, and authorized security evaluation only. Only use wireless evaluation functions on networks and devices that you own or have explicit permission to test. USB HID automation profiles should be created and executed only on computers you own or are authorized to operate. Users are responsible for complying with all applicable laws and regulations.
