DSTIKE Deauther32 Watch MINI — ESP32-C5 Dual-Band Watch

Dual-Band ESP32-C5 Wi-Fi Assessment Watch

A portable, open-source development device designed for makers, developers, and authorized wireless network testing. It features dual-band 2.4 GHz and 5 GHz support, a 1.54-inch IPS color display, Wi-Fi 6 capability, a 700mAh battery, and clear RGB status feedback.

What Is It?

The DSTIKE Deauther32 Watch MINI is a new generation of the Deauther Watch platform, upgraded from the ESP8266 to the Espressif ESP32-C5 RISC-V microcontroller.

The new hardware supports wireless scanning and controlled assessment on compatible 2.4 GHz and 5 GHz networks. A 1.54-inch IPS color display provides a clearer interface, while the integrated RGB LED makes the current operating status easy to identify.

The device is intended for open-source development, wireless technology education, network diagnostics, and authorized security assessment.

Why Did We Make It?

Modern wireless environments increasingly use both 2.4 GHz and 5 GHz frequencies. Earlier ESP8266-based devices were limited to 2.4 GHz, making them less suitable for studying current dual-band network environments.

By using the ESP32-C5, the Watch MINI provides dual-band connectivity and Wi-Fi 6 support in a compact, wearable format. It gives makers and developers a portable platform for learning about wireless communication, testing their own equipment, and developing customized firmware.

What Makes It Special?

• Dual-Band Capability: Supports scanning and controlled packet testing on compatible 2.4 GHz and 5 GHz networks.
• Clear RGB Status Feedback: The integrated RGB LED provides real-time operating information without requiring constant screen checks:
  • 🔵 Blue: Scanning authorized networks
  • 🔴 Red: Test active — controlled assessment in progress
  • 🟢 Green: Scan complete — ready for the next operation

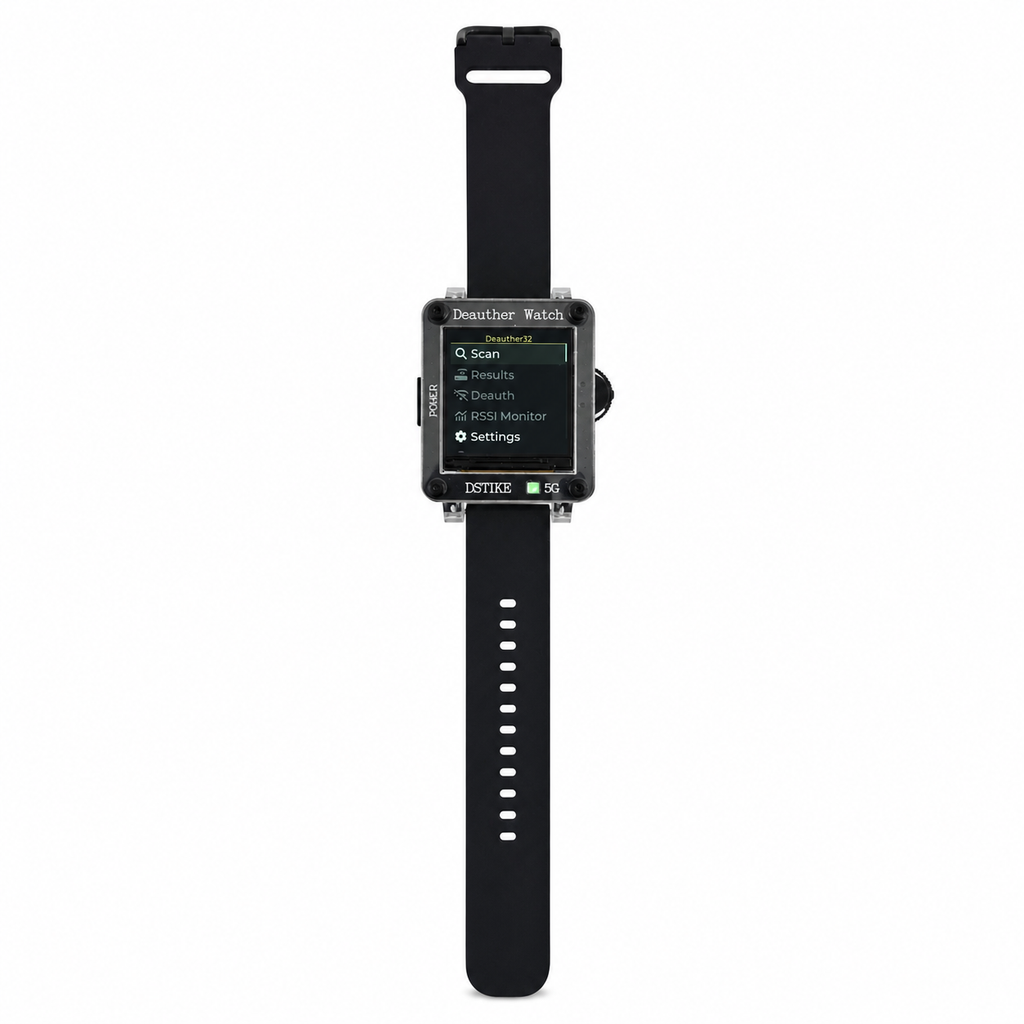

• 1.54-Inch IPS Color Display: The redesigned color interface makes menus, network information, and test status easier to read.
• ESP32-C5 RISC-V Platform: Provides improved efficiency, dual-band wireless support, and Wi-Fi 6 capability for development and experimentation.
• Open-Source Firmware: Developers can inspect, modify, and extend the firmware for their own projects and authorized testing requirements.

Key Features

• Dual-band 2.4 GHz and 5 GHz Wi-Fi support
• Wi-Fi 6 capability
• Wireless network scanning and analysis
• Controlled packet testing on compatible networks
• Real-time RSSI signal-strength monitoring
• Color-optimized Deauther32 user interface
• RGB operating-status indicator
• Internal dual-band antenna
• USB-C charging and firmware flashing
• Open-source, developer-friendly platform

RSSI Signal Monitor

The built-in RSSI dashboard displays real-time signal-strength changes for selected access points. Visual charts can help users evaluate wireless coverage, compare signal stability, troubleshoot placement issues, and study how environmental conditions affect network performance.

Technical Specifications

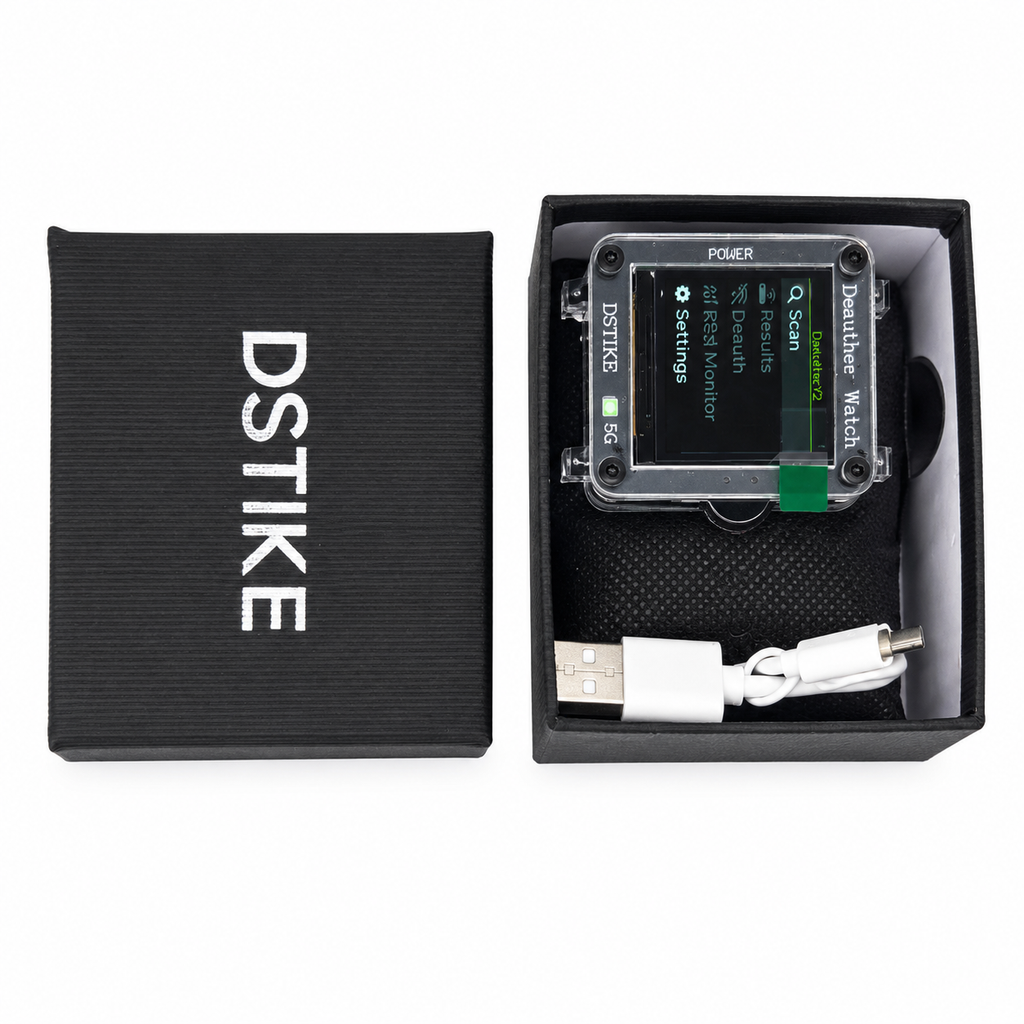

What’s in the Box?

• 1 × DSTIKE Deauther32 Watch MINI, fully assembled
• 1 × USB-C cable

Responsible Use and Legal Notice

This device is intended for education, open-source development, network diagnostics, and authorized security testing only.

Use it exclusively on networks and equipment that you own or for which you have received explicit permission to test. Unauthorized disruption of wireless communications may be illegal and could cause service interruptions.

Regulations governing 5 GHz channels, transmission behavior, and DFS frequencies vary by country or region. The user is responsible for complying with all applicable local radio and telecommunications regulations.

The ESP32-C5 is a relatively new development platform, and firmware functionality may continue to evolve. This product is best suited to makers, developers, educators, and wireless technology researchers who understand the experimental nature of open-source hardware.
