DSTIKE Deauther32 Power Bank — ESP32-C5 Dual-Band

Dual-Band ESP32-C5 Development Tool and Portable Power Bank

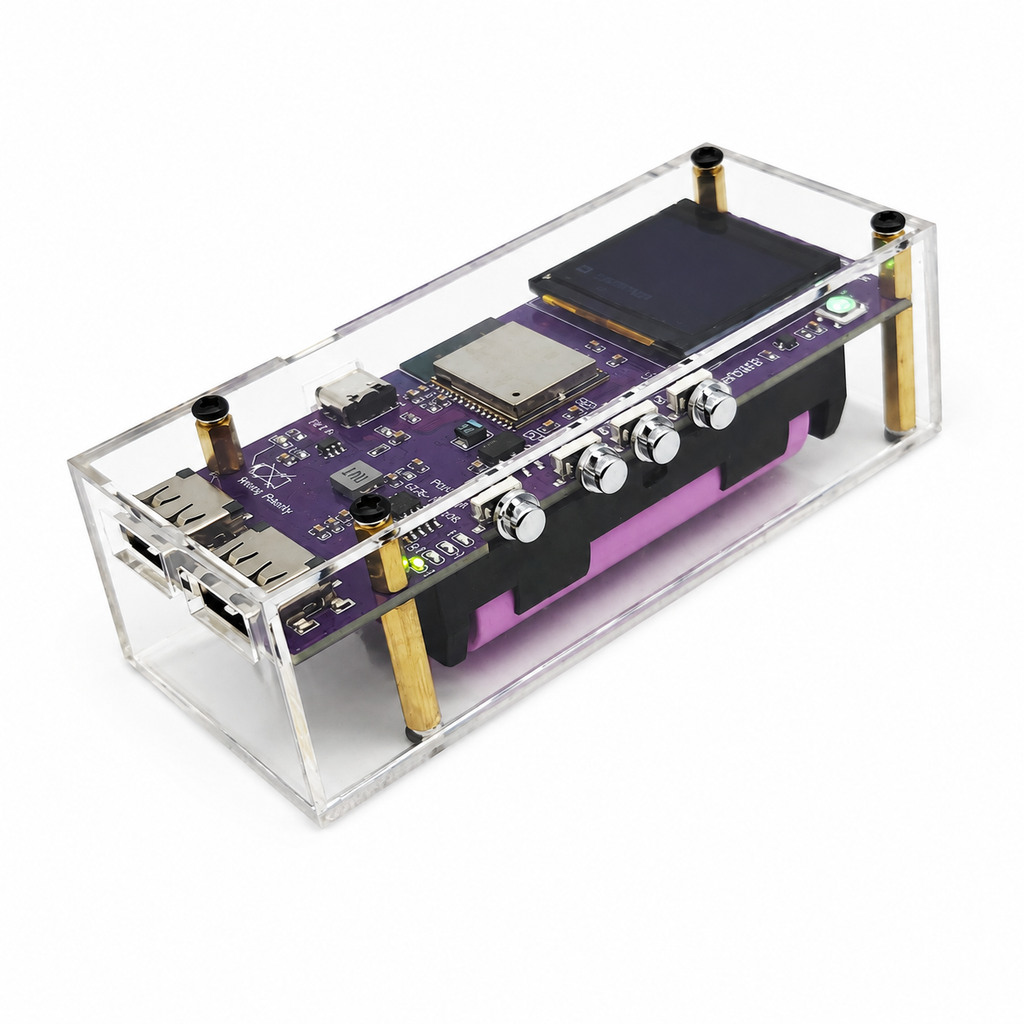

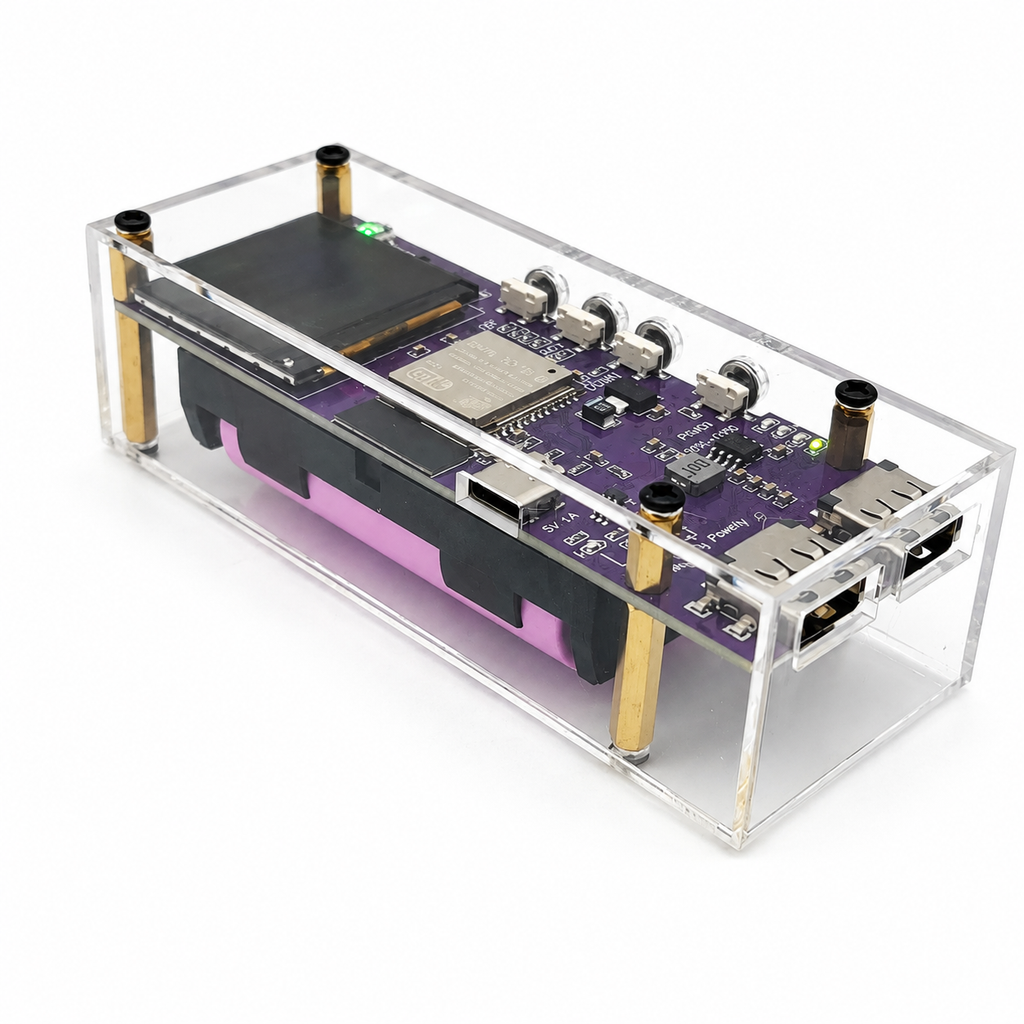

The DSTIKE Deauther32 Power Bank combines a dual-band ESP32-C5 wireless development platform with a practical dual-output power bank.

Designed for makers, developers, wireless technology education, and authorized network assessment, it features a 1.5-inch color display, WS2812B RGB status LED, four-level battery indicator, transparent acrylic enclosure, two USB-A power outputs, and support for two replaceable 18650 batteries.

The device arrives fully assembled. Batteries are not included and must be purchased locally.

What Is It?

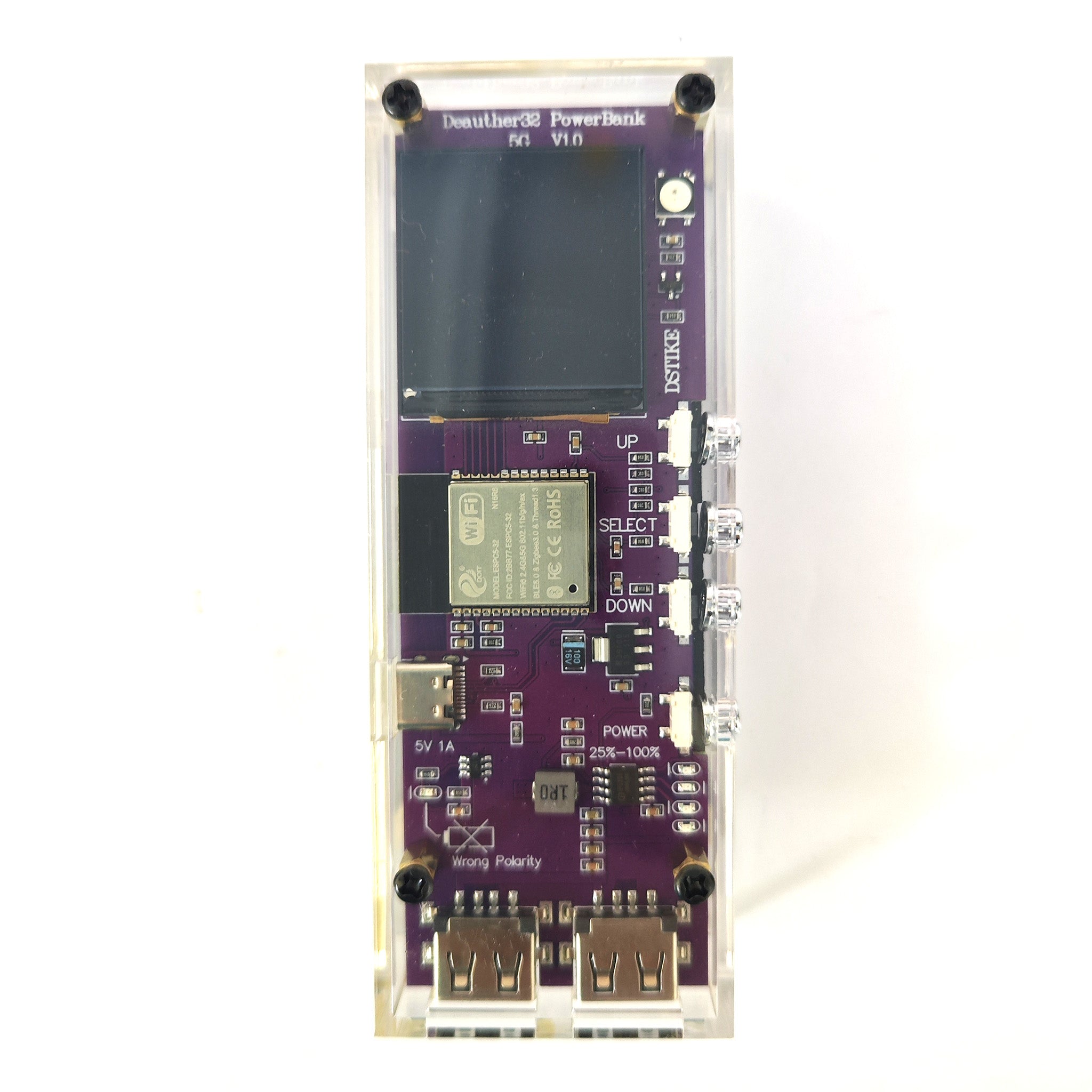

The Deauther32 Power Bank is a portable ESP32-C5 development and wireless assessment device built into a functional power-bank platform.

Its Espressif ESP32-C5 RISC-V microcontroller supports compatible 2.4 GHz and 5 GHz Wi-Fi networks and provides Wi-Fi 6 capability. The integrated color display provides an interface for network information, scan results, RSSI monitoring, device status, and firmware settings.

With two compatible 18650 batteries installed, the device can also provide standard 5V power through its two USB-A output ports, allowing it to power or charge compatible USB devices.

The product is intended for open-source development, wireless technology education, signal monitoring, network diagnostics, and controlled security assessment on authorized equipment.

Why Did We Make It?

Portable wireless development devices normally require a separate battery enclosure or external power bank. We wanted to combine these functions into one maker-focused product.

The Deauther32 Power Bank integrates:

• An ESP32-C5 dual-band development platform

• A built-in 1.5-inch color display

• Replaceable 18650 battery support

• Two USB-A power outputs

• USB-C charging input

• Physical navigation controls

• RGB operating-status feedback

• Four-level battery indication

• A transparent acrylic enclosure

This design allows the device to operate as both a portable ESP32-C5 platform and a practical power source for compatible USB equipment.

What Makes It Special?

• Dual-Band ESP32-C5 Platform: Supports scanning and controlled packet testing on compatible 2.4 GHz and 5 GHz networks.

• Wi-Fi 6 Capability: Provides a modern RISC-V platform for wireless development and experimentation.

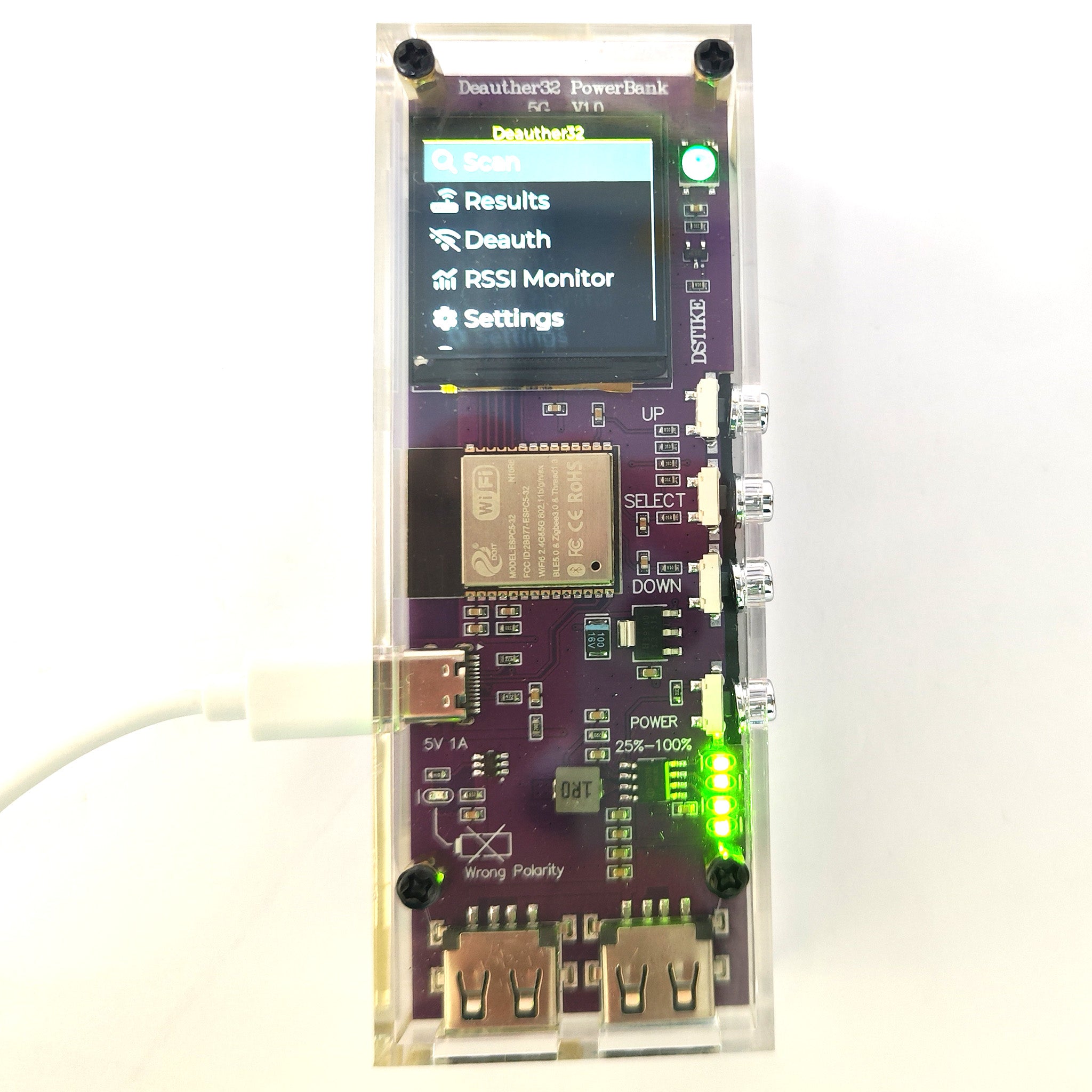

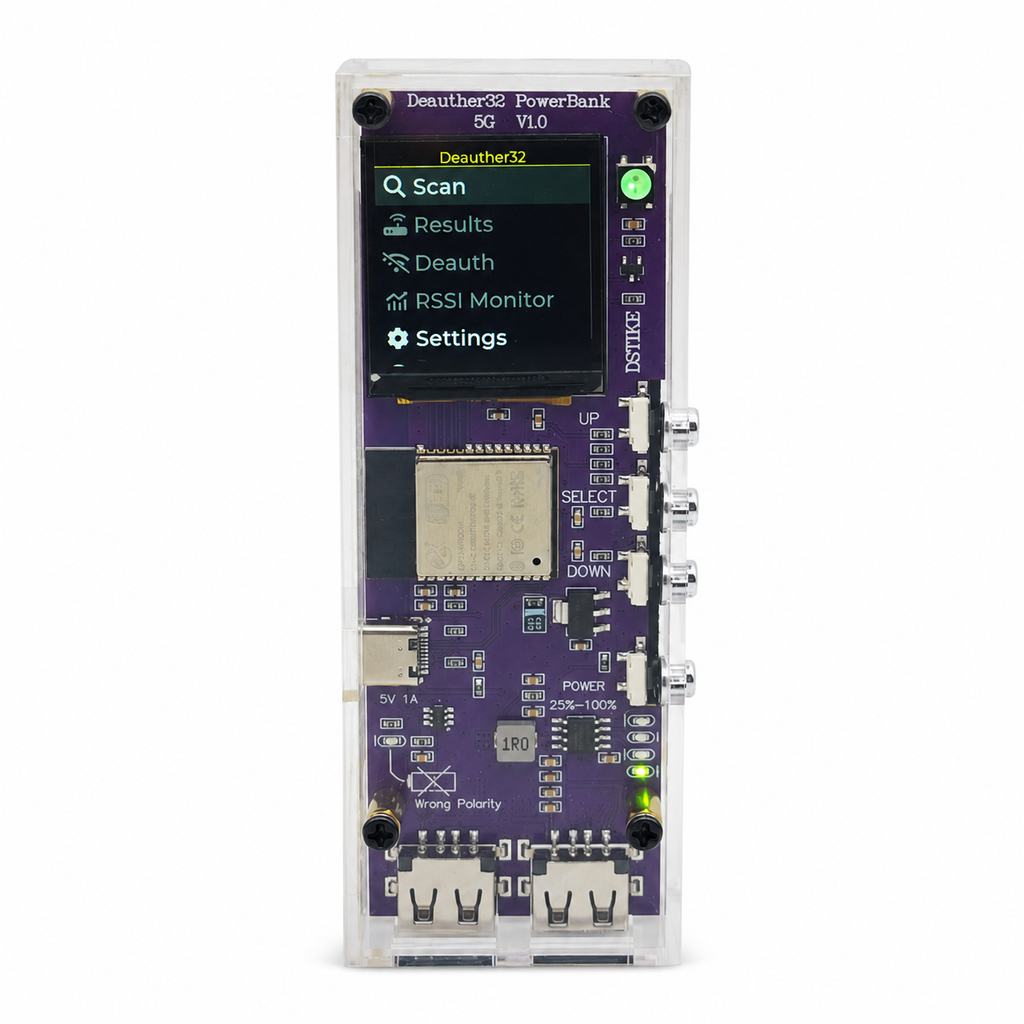

• 1.5-Inch Color Display: View menus, network information, RSSI data, operating status, and firmware options directly on the device.

• Dual USB-A Outputs: Provides two standard USB power outputs for compatible devices.

• Replaceable Battery Design: Uses two locally sourced 18650 lithium-ion batteries instead of a permanently installed battery.

• Four-Level Battery Indicator: Four LEDs provide a quick visual estimate of the remaining battery level.

• WS2812B RGB LED: Provides programmable status feedback and can be customized through firmware.

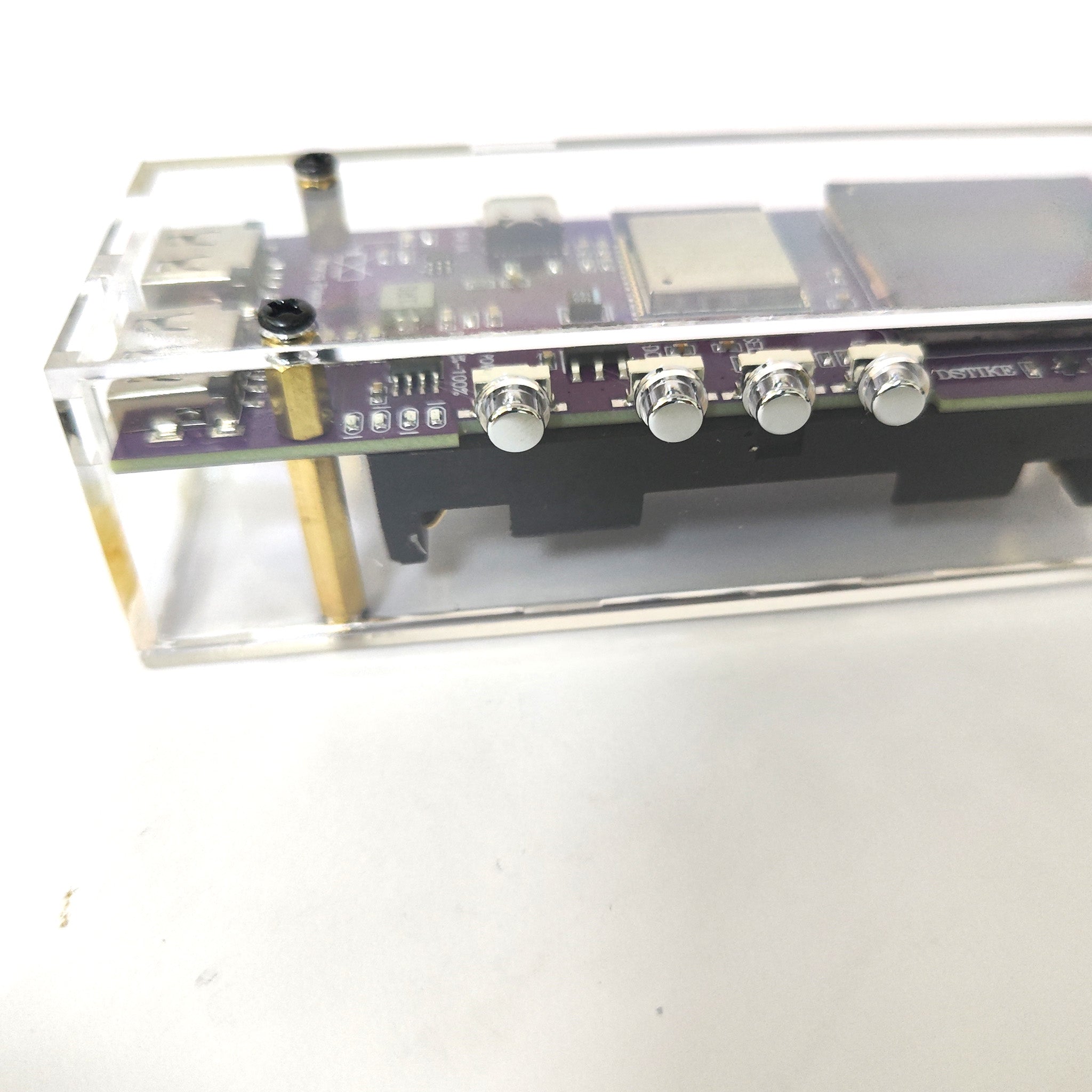

• Physical Controls: Dedicated UP, SELECT, DOWN, and POWER buttons provide direct menu navigation.

• Transparent Acrylic Enclosure: Protects the circuit board while keeping the internal electronics visible.

• Fully Assembled: The enclosure, controls, display, and mainboard arrive assembled and ready for battery installation.

• Developer-Friendly Platform: The ESP32-C5 firmware can be updated or modified for compatible custom projects.

Key Features

• Espressif ESP32-C5 RISC-V microcontroller

• Dual-band 2.4 GHz and 5 GHz Wi-Fi support

• Wi-Fi 6 capability

• Wireless network scanning and analysis

• Controlled packet testing on compatible networks

• Real-time RSSI signal-strength monitoring

• 1.5-inch color display

• WS2812B addressable RGB status LED

• Four-LED battery-level indicator

• Two USB-A power output ports

• Power-bank output rated up to 5V/2A

• USB-C 5V/1A charging input

• Supports two replaceable 18650 batteries

• UP, SELECT, DOWN, and POWER buttons

• Transparent acrylic enclosure

• Fully assembled construction

• Preloaded Deauther32 firmware

• Suitable for portable or desktop use

Power Bank or Watch MINI?

Choose the Deauther32 Power Bank if you need replaceable batteries, longer portable operation, or USB power outputs.

Choose the Watch MINI if compact size and wearable operation are your priorities.

Power and USB Operation

The device supports two main power functions:

Charging the Installed Batteries

Connect a suitable 5V USB power source to the USB-C input.

• Charging input: 5V/1A

• Battery status: shown through the four-LED indicator

• Required batteries: two compatible rechargeable 18650 cells

Powering Compatible USB Devices

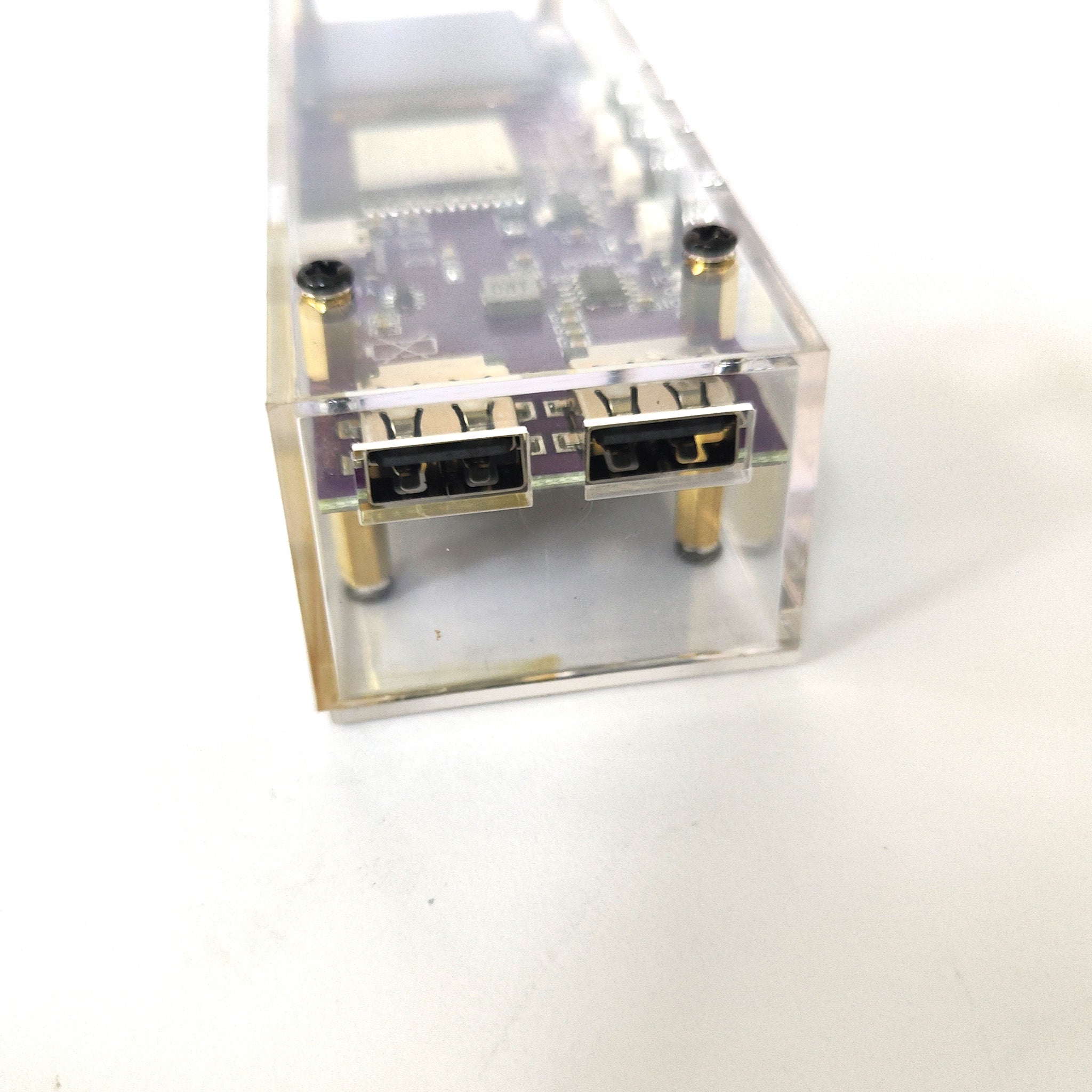

The two USB-A ports can provide standard 5V output to compatible USB devices.

• Number of outputs: two USB-A ports

• Rated output: up to 5V/2A

• Actual performance depends on battery quality, battery charge level, connected load, and cable condition

This product is intended to provide standard USB power. Compatibility with a particular fast-charging protocol is not guaranteed.

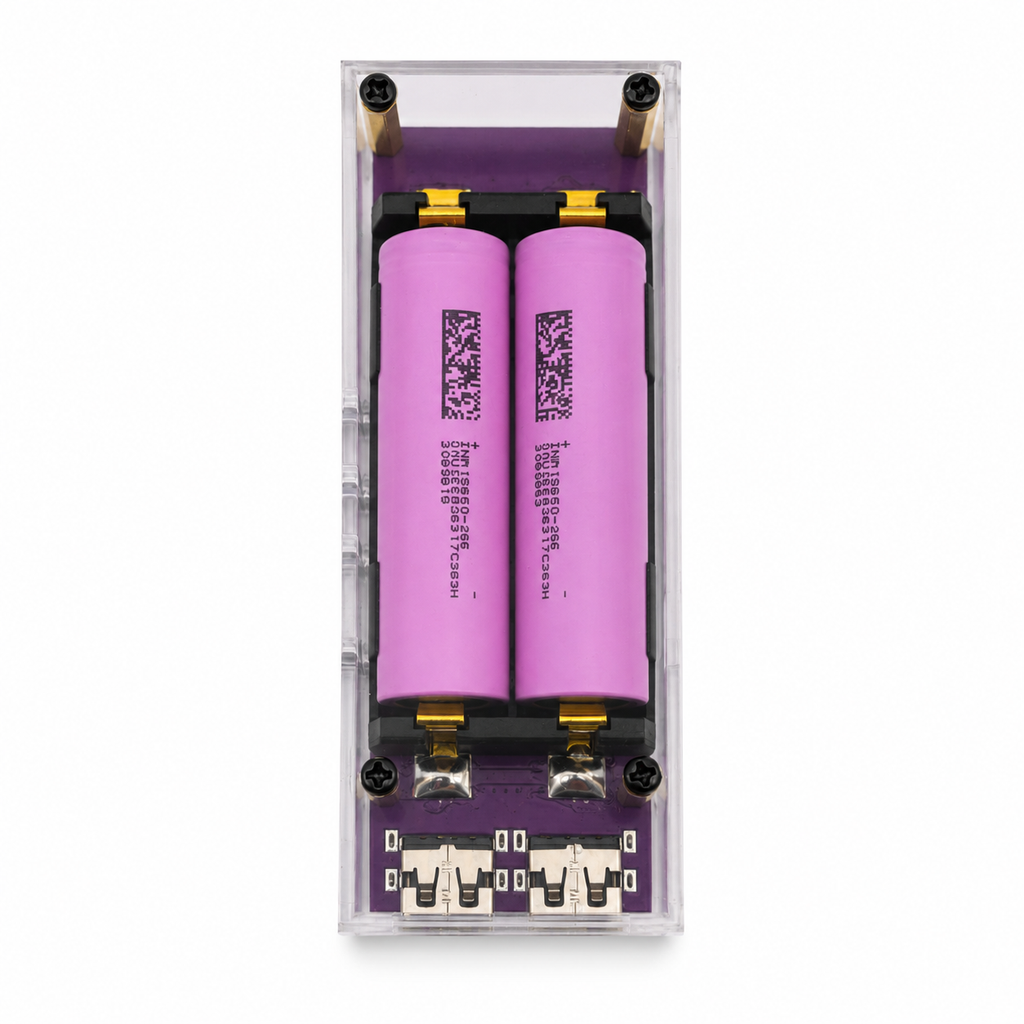

Battery Information

Batteries Are Not Included

Due to international shipping restrictions, the device is supplied without batteries.

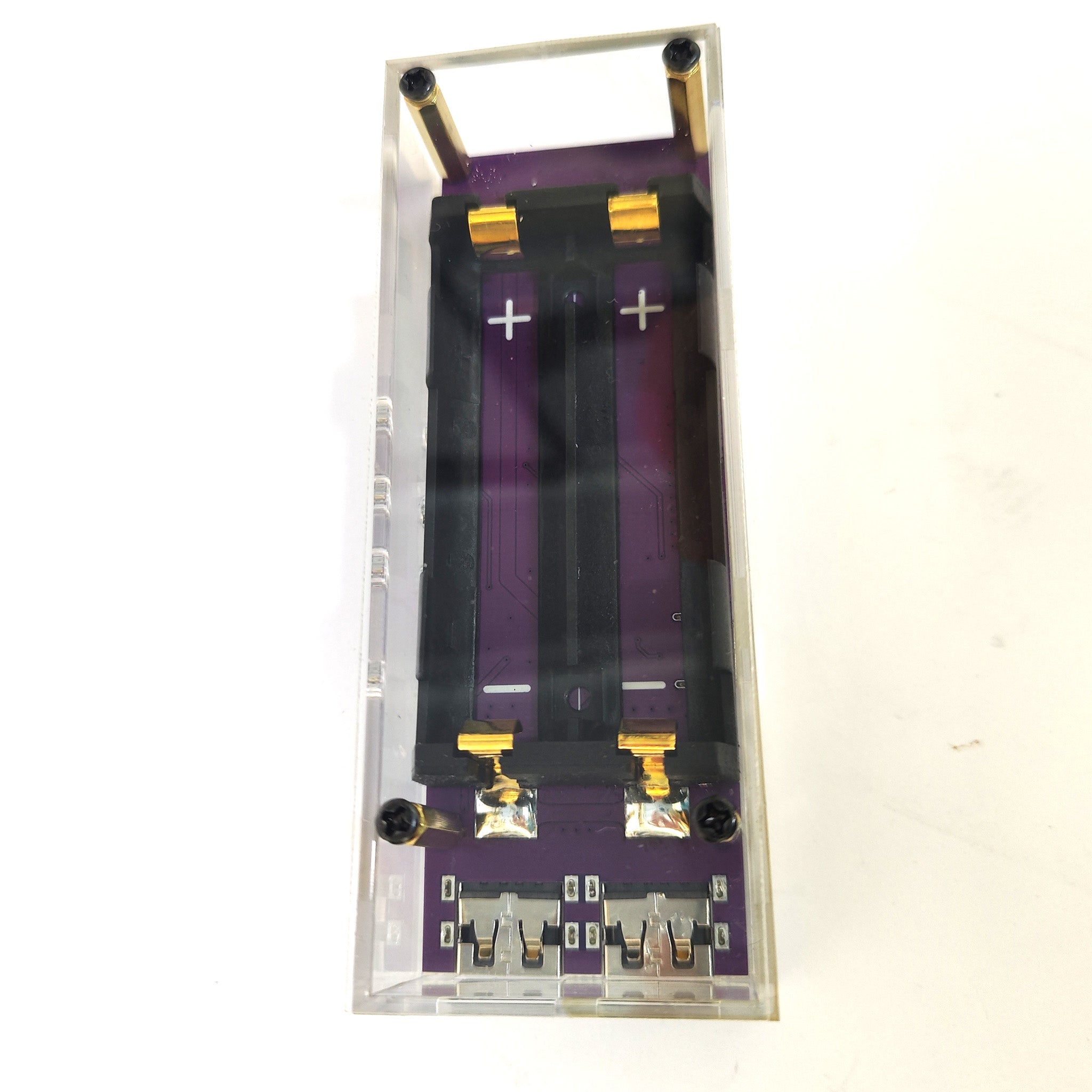

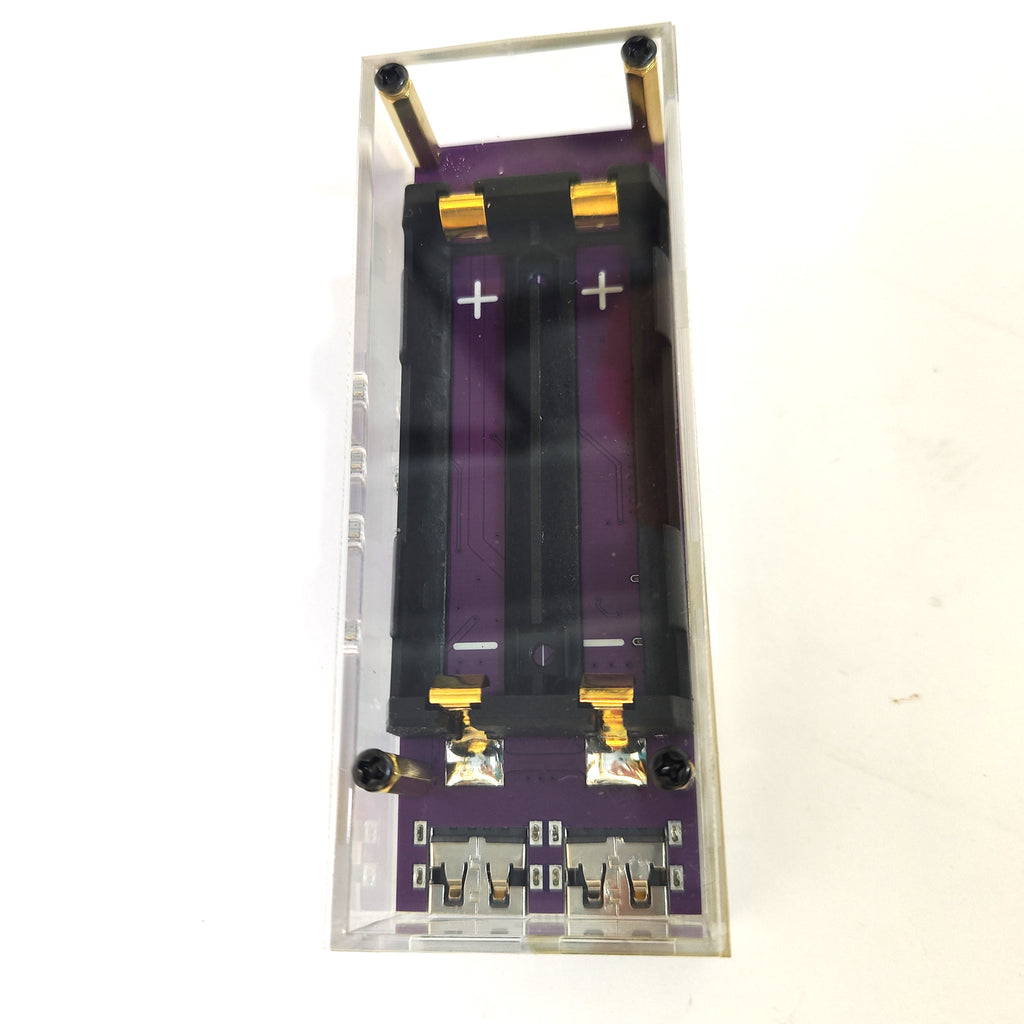

You will need to purchase two compatible rechargeable 18650 lithium-ion batteries locally.

For safe and reliable operation:

• Use two matching cells from the same manufacturer.

• Use batteries with the same model, capacity, age, and similar charge level.

• Confirm the positive and negative polarity before installation.

• Do not mix old and new batteries.

• Do not mix batteries with different specifications.

• Do not use damaged, swollen, leaking, overheated, or unwrapped cells.

• Do not insert or remove batteries while the device is charging.

• Do not leave the device charging unattended.

Battery quality directly affects operating time and USB output performance.

Technical Specifications

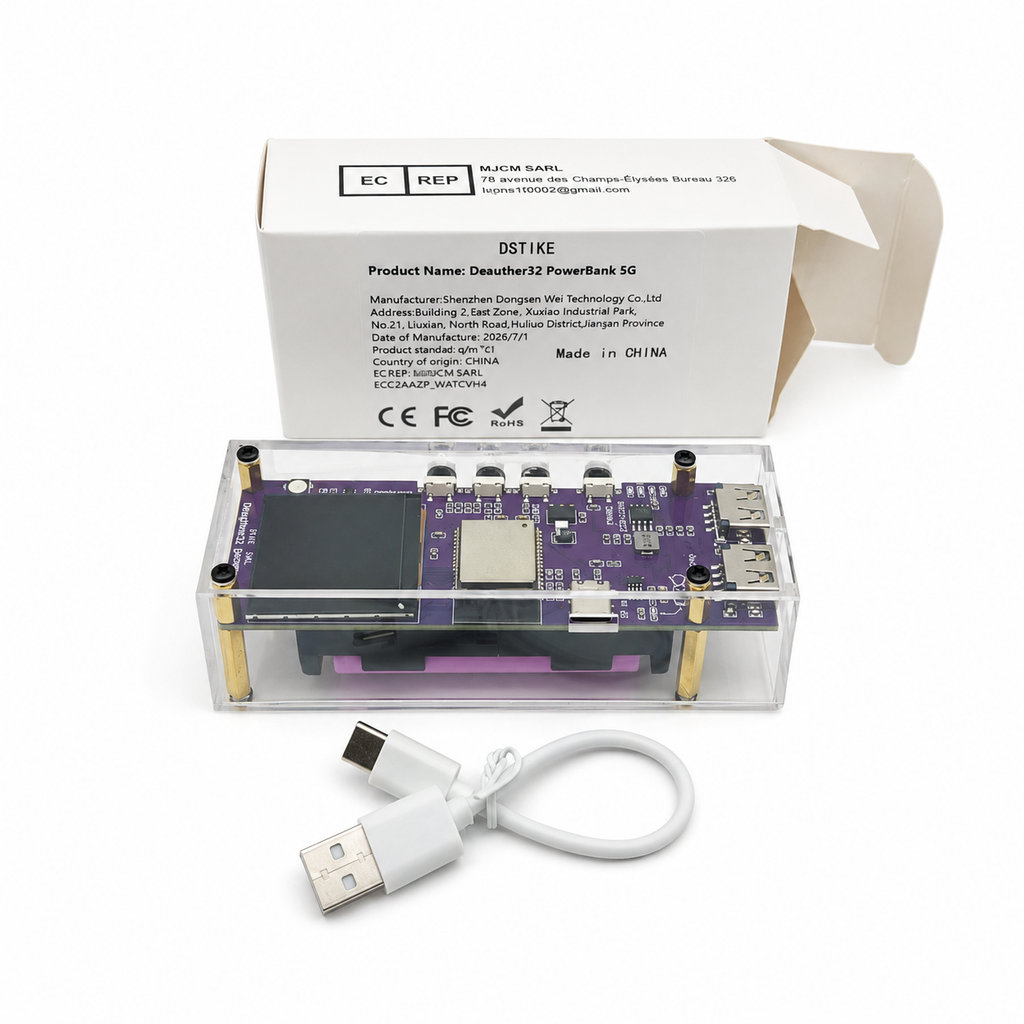

What’s in the Box?

• 1 × Fully assembled DSTIKE Deauther32 Power Bank

• 1 × Installed transparent acrylic enclosure

• 1 × USB-C cable

• 18650 batteries are not included

Firmware and Network Compatibility

Available functions may change as the Deauther32 firmware continues to develop.

Controlled packet-testing functions depend on the selected Wi-Fi channel, network hardware, firmware version, and network security configuration. Networks using Protected Management Frames, including 802.11w/PMF, may limit or prevent certain assessment functions.

The device does not bypass PMF protection.

Important Note About “5G”

“5G” in the original product name refers to the 5 GHz Wi-Fi frequency band. It does not mean that the product supports 5G cellular connectivity, mobile data, or a SIM card.

Responsible Use and Legal Notice

This device is intended for education, open-source development, wireless signal monitoring, network diagnostics, and authorized security testing only.

Use it exclusively on networks and equipment that you own or for which you have received explicit permission to test. Unauthorized disruption of wireless communications may be illegal and could cause service interruptions.

Regulations governing 5 GHz channels, transmission behavior, DFS frequencies, lithium batteries, and portable power products vary by country or region. The user is responsible for complying with all applicable local radio, transportation, and electrical-safety regulations.

The ESP32-C5 is a relatively new development platform, and firmware functionality may continue to evolve. This product is best suited to makers, developers, educators, and wireless technology researchers who understand the experimental nature of open-source hardware.
