DSTIKE Deauther Watch X II — ESP8266 Wi-Fi Testing Tool

Classic ESP8266 Wi-Fi Development Watch

The DSTIKE Deauther Watch X II is a compact, open-source ESP8266 development device designed for makers, wireless technology education, firmware development, and authorized 2.4 GHz network assessment.

It combines a customized 4MB ESP-07 module, 1.3-inch OLED display, 700mAh rechargeable battery, USB-C connectivity, three-way navigation switch, RGB LED, clock display, and protective enclosure in a lightweight wearable format.

The Watch X II supports 2.4 GHz Wi-Fi only. It does not support 5 GHz Wi-Fi.

What Is It?

The Deauther Watch X II is an ESP8266 development board integrated into a wearable enclosure.

It arrives with compatible ESP8266 Deauther firmware installed, providing an interface for wireless network scanning, packet monitoring, signal observation, clock display, and controlled protocol assessment on authorized 2.4 GHz networks.

Because the hardware is based on the open-source ESP8266 platform, developers can also replace the supplied firmware using the Arduino IDE and repurpose the device for custom wearable, display, LED, sensor, or IoT projects.

Why Did We Make It?

The original Deauther Watch X provided an affordable way to learn about ESP8266 wireless development in a portable format.

The Watch X II updates the original design with:

• USB-C connectivity

• A larger 700mAh battery

• Improved enclosure hardware

• Socket hex screws

• Updated RGB LED hardware

• A more accessible 3D-printed power control

• The same compact ESP8266 development platform

The result is a practical entry-level device for users who want to explore ESP8266 programming and 2.4 GHz wireless technology without the size or complexity of a larger development tool.

What Makes It Special?

• Customized 4MB ESP-07 Module: Provides a familiar ESP8266 development environment with sufficient flash storage for compatible firmware.

• 1.3-Inch OLED Display: Shows menus, network information, packet-monitoring data, clock information, and operating status.

• Three-Way Navigation Switch: Scroll up, scroll down, and confirm selections with one compact control.

• Built-In 700mAh Battery: Supports portable operation without an external battery holder.

• USB-C Connectivity: Provides a modern connection for charging and firmware flashing.

• RGB Status LED: Delivers programmable visual feedback for device status and custom applications.

• Built-In Ceramic Antenna: Keeps the standard version compact without requiring an external antenna.

• Optional Antenna Expansion Board: Provides additional hardware flexibility for compatible external antenna projects.

• Open-Source Firmware Support: Compatible with the ESP8266 Deauther ecosystem and custom Arduino firmware.

• Protective Enclosure: A 3D-printed case and transparent acrylic panel protect the circuit board while keeping the internal hardware visible.

Improvements Over the Original Watch X

Key Features

• Customized ESP8266 ESP-07 module

• 4MB flash memory

• 2.4 GHz Wi-Fi support

• Wireless network scanning

• Packet and activity monitoring

• Controlled protocol testing on compatible networks

• 1.3-inch SH1106 OLED display

• Three-way navigation switch

• Built-in 700mAh rechargeable lithium battery

• USB-C charging and firmware flashing

• Built-in ceramic antenna

• Optional antenna expansion board

• Programmable RGB LED

• Additional LED on GPIO16

• Clock display

• Preloaded ESP8266 Deauther firmware

• Arduino IDE compatibility

• Open-source, developer-friendly platform

Watch X II or Watch MINI?

Choose the Watch X II if you prefer an affordable, compact ESP8266 platform for 2.4 GHz learning and development.

Choose the Watch MINI if you need 5 GHz Wi-Fi support, Wi-Fi 6 capability, a color display, or the newer ESP32-C5 platform.

Choose Your Version

Watch X II — Assembled

Includes the fully assembled Watch X II with its internal ceramic antenna.

This is the recommended option for customers who want the most compact configuration.

Watch X II with Antenna Expansion Board

Includes the assembled Watch X II and a compatible antenna expansion board.

The expansion board is intended for makers who want to experiment with a compatible external antenna configuration. An external antenna is not included unless specifically shown in the selected package.

Technical Specifications

Hardware Connections

These GPIO assignments can be used when developing compatible custom firmware.

Firmware Functions

Depending on the installed firmware version, the Watch X II may provide:

• 2.4 GHz wireless network scanning

• Signal and channel information

• Packet and activity monitoring

• Controlled management-frame testing

• Beacon and probe-frame demonstrations in authorized laboratory environments

• Clock display

• Programmable LED functions

• Web-based configuration

• Custom SSID and firmware settings

Firmware functions are intended only for controlled education and authorized assessment.

Firmware Safety Timeout

Compatible ESP8266 Deauther firmware includes a default five-minute timeout for active assessment functions.

This timeout is a safety feature intended to reduce accidental prolonged operation. Reaching the timeout does not indicate a hardware fault.

Power and Charging

The Watch X II includes a built-in 700mAh rechargeable lithium battery.

• Typical active runtime: up to approximately 7–8 hours

• Typical charging time: approximately 4–5 hours

• Charging indicator: red while charging

• Fully charged indicator: green

Actual runtime and charging time depend on battery condition, display activity, Wi-Fi use, RGB brightness, firmware settings, cable quality, and power-source output.

Do not charge the device unattended. Stop using it if the battery becomes swollen, damaged, unusually hot, or produces an unusual smell.

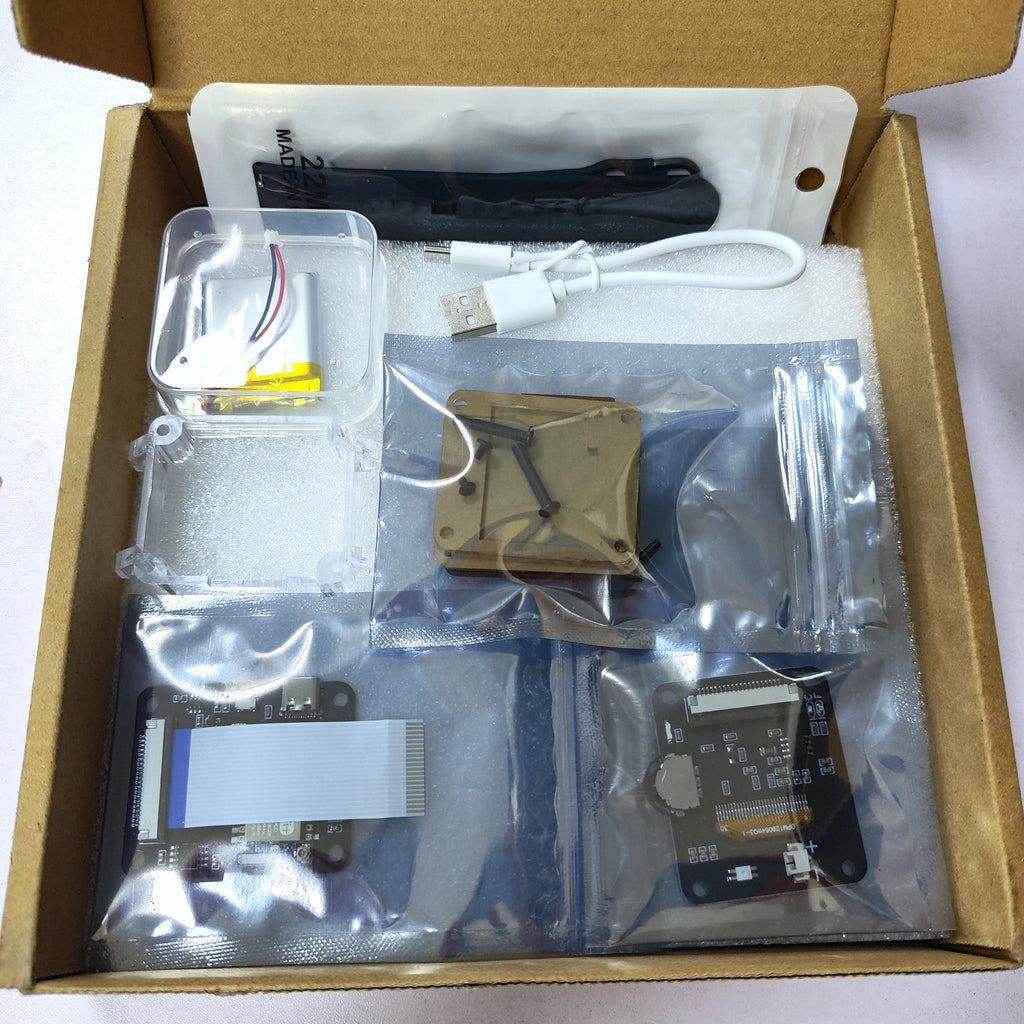

What’s in the Box?

Watch X II — Assembled

• 1 × Fully assembled DSTIKE Deauther Watch X II

• 1 × Built-in 700mAh battery

• 1 × Watch strap

• 1 × USB-C data and charging cable

• 1 × Quick-start guide

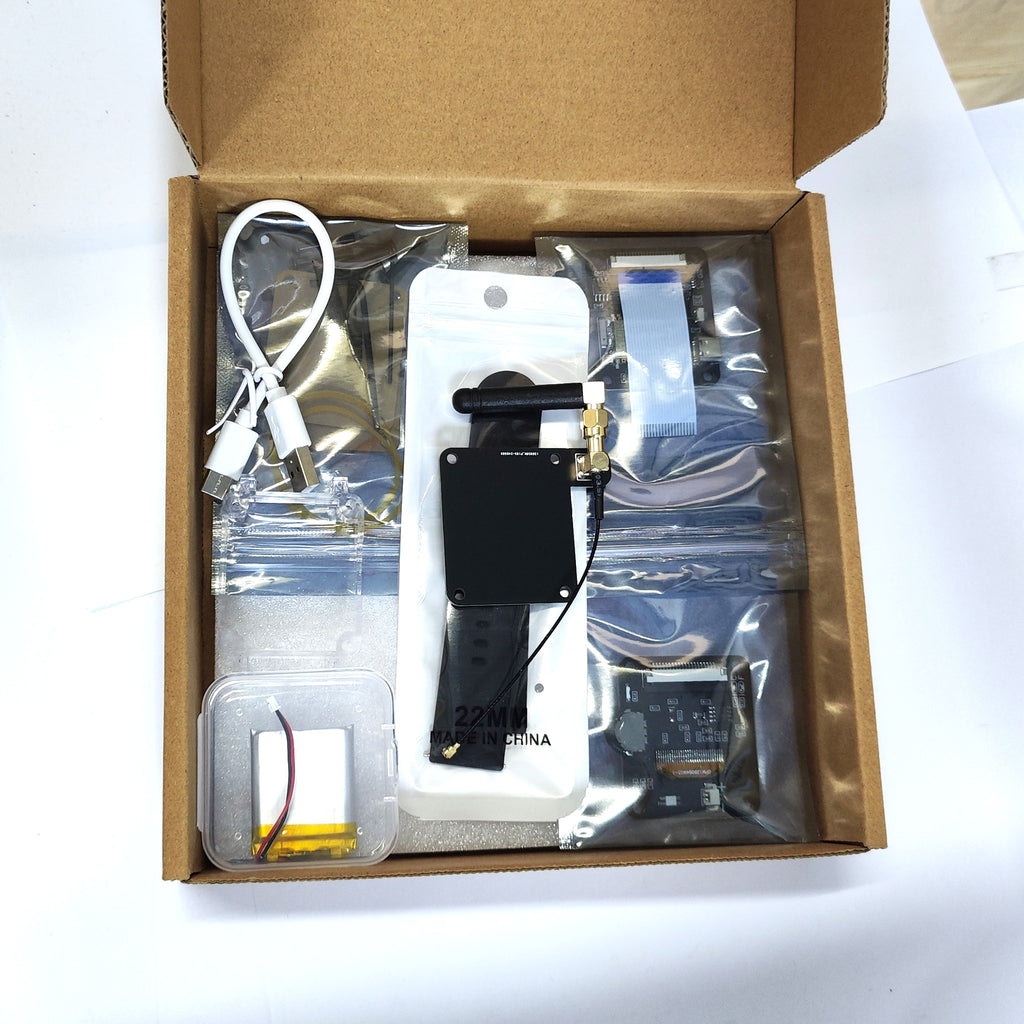

Watch X II with Antenna Expansion Board

• 1 × Fully assembled DSTIKE Deauther Watch X II

• 1 × Antenna expansion board

• 1 × Built-in 700mAh battery

• 1 × Watch strap

• 1 × USB-C data and charging cable

• 1 × Quick-start guide

Open-Source Development

The Watch X II is compatible with the open-source ESP8266 Deauther project:

https://github.com/SpacehuhnTech/esp8266_deauther

Developers can also use the Arduino IDE to create custom applications such as:

• Wearable sensor displays

• Wi-Fi signal monitors

• Clock and timer projects

• Portable IoT controls

• LED notification devices

• Custom menu interfaces

• ESP8266 programming exercises

Important Wireless-Band Notice

The Watch X II supports 2.4 GHz Wi-Fi only.

It does not support:

• 5 GHz Wi-Fi

• Wi-Fi 6

• 5G cellular connectivity

• SIM cards or mobile data

For 5 GHz Wi-Fi support, choose the Deauther32 Watch MINI or Watch MAX.

Firmware and Network Compatibility

Available functions depend on the installed firmware version.

Controlled packet-testing functions may be affected by the selected Wi-Fi channel, network hardware, regional settings, and network security configuration. Networks using Protected Management Frames, including 802.11w/PMF, may limit or prevent certain assessment functions.

The device does not bypass PMF protection.

Responsible Use and Legal Notice

This device is intended for education, open-source development, wireless signal monitoring, network diagnostics, and authorized security testing only.

Use it exclusively on networks and equipment that you own or for which you have received explicit permission to test. Unauthorized disruption of wireless communications may be illegal and could cause service interruptions.

Regulations governing wireless testing and 2.4 GHz transmissions vary by country or region. The user is responsible for complying with all applicable local radio, privacy, and telecommunications regulations.

The ESP8266 and its original SDK were not specifically designed as professional wireless assessment equipment. The supplied firmware is experimental, features may change, and bugs may occur. This product is best suited to makers, developers, educators, and wireless technology researchers who understand the experimental nature of open-source hardware.
