DSTIKE Arduino Leonardo 1.3” IPS Screen
  • DSTIKE Arduino Leonardo 1.3” IPS Screen
  • DSTIKE Arduino Leonardo 1.3” IPS Screen
  • DSTIKE Arduino Leonardo 1.3” IPS Screen
  • DSTIKE Arduino Leonardo 1.3” IPS Screen
  • DSTIKE Arduino Leonardo 1.3” IPS Screen
  • DSTIKE Arduino Leonardo 1.3” IPS Screen
  • DSTIKE Arduino Leonardo 1.3” IPS Screen
  • DSTIKE Arduino Leonardo 1.3” IPS Screen
  • DSTIKE Arduino Leonardo 1.3” IPS Screen
  • DSTIKE Arduino Leonardo 1.3” IPS Screen
DSTIKE Arduino Leonardo 1.3” IPS Screen

DSTIKE Arduino Leonardo 1.3” IPS Screen

$16.00

Reliable shipping

Flexible returns

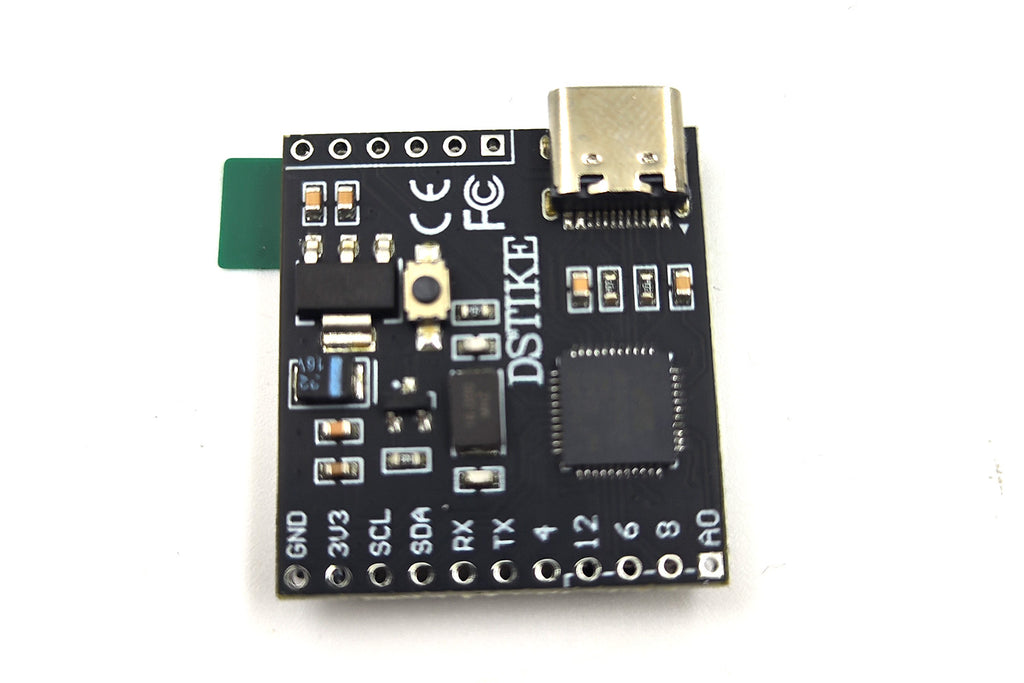

Compact Arduino Leonardo + 1.3" IPS Display Dev Board

All-in-one embedded solution with integrated IPSscreen

This ultra-compact development board combines an Arduino Leonardo microcontroller with a vibrant 1.3-inch IPS color display, housed in a tiny 28x31mm form factor. Perfect for space-constrained projects requiring real-time visual feedback and interactive control.

Key Features:

  • Arduino Leonardo Compatibility - Program using familiar Arduino IDE (Leonardo bootlaoder)

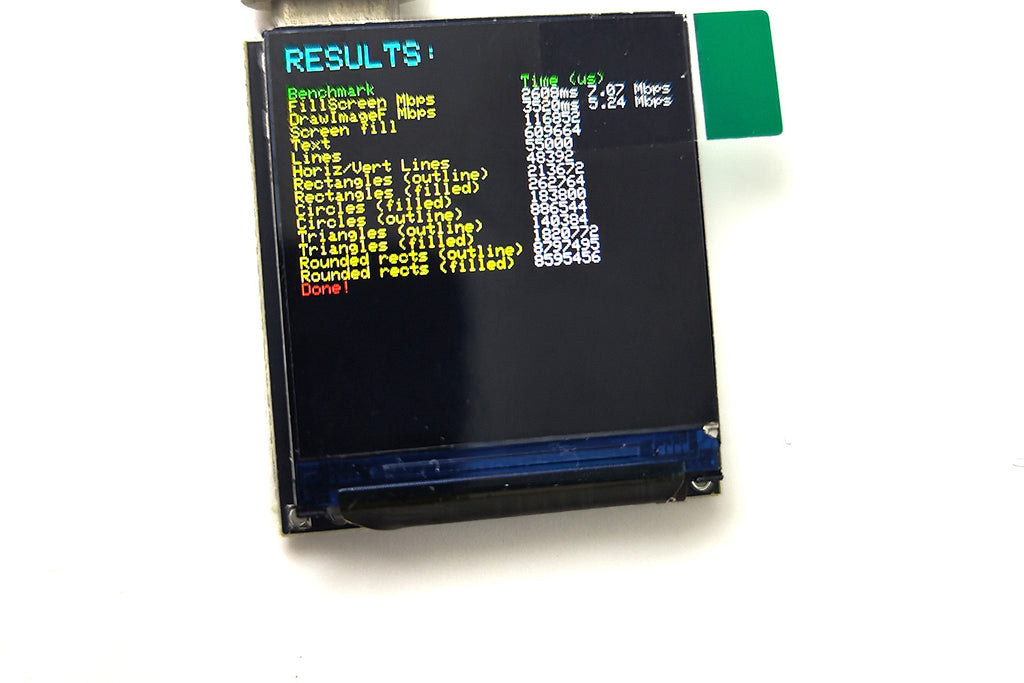

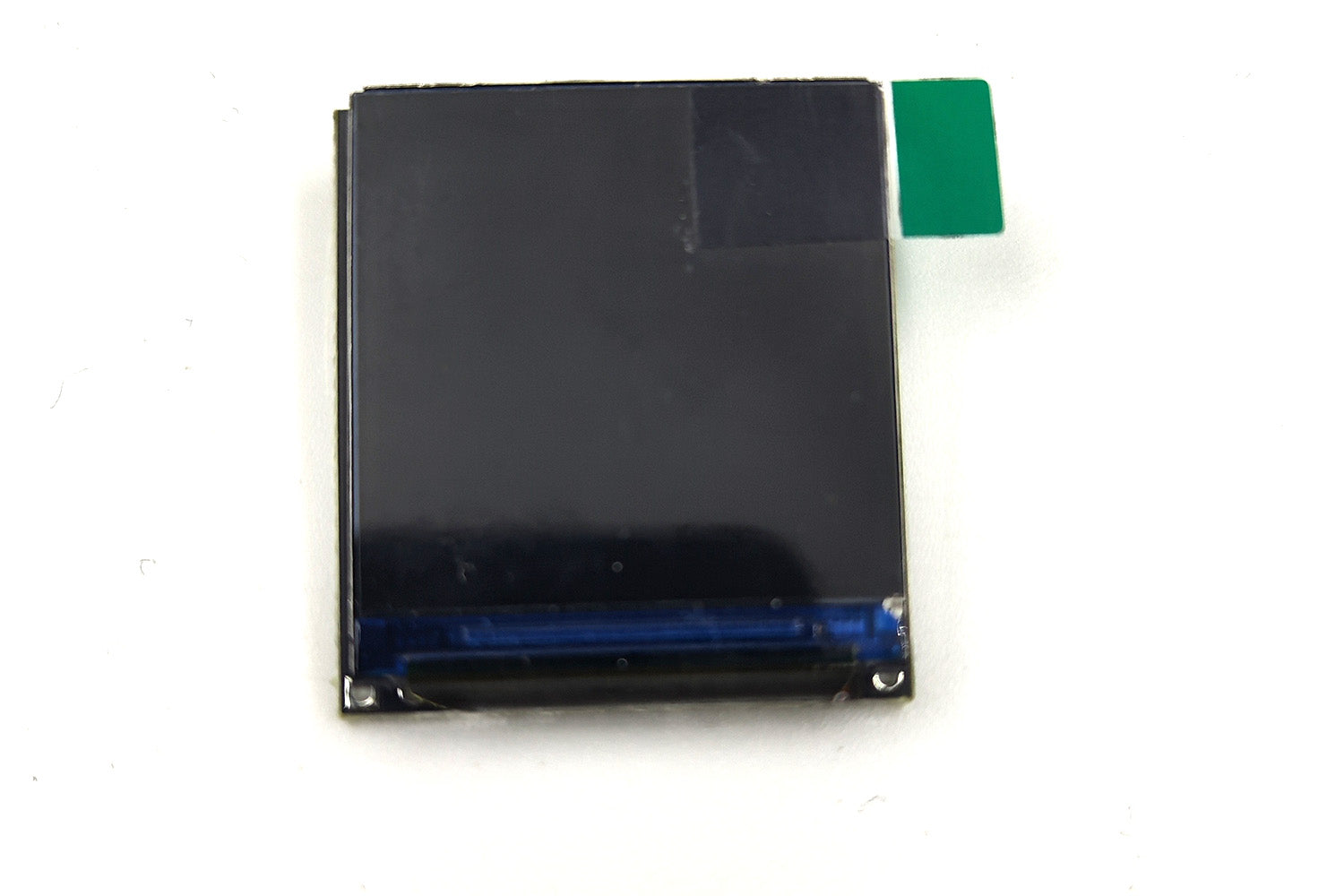

  • ​Integrated 1.3" IPS Screen - Bright, clear display with wide viewing angles (240x240 resolution*)
  • ​9 GPIO Ports - Expandable I/O for sensors, actuators, and peripherals
  • Type-C USB Power - Single cable for both power and programming
  • Rugged Design - Durable PCB construction with soldered components

Technical Specs:

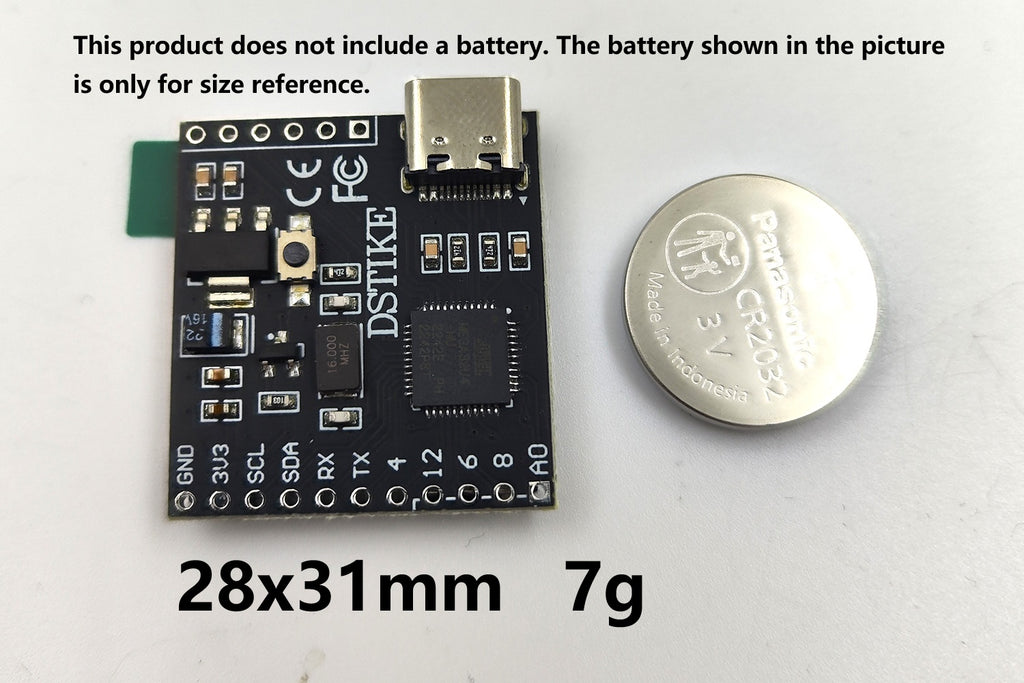

  • Dimensions: 28mm x 31mm x 10mm
  • Weight: 7g (excluding cables)
  • Operating Voltage: 5V DC
  • Display Type: 1.3" IPS Screen(240x240)

Ideal For:

  • IoT sensor monitoring systems
  • Portable data loggers
  • DIY electronics projects
  • Educational STEM kits
  • Embedded product prototypes

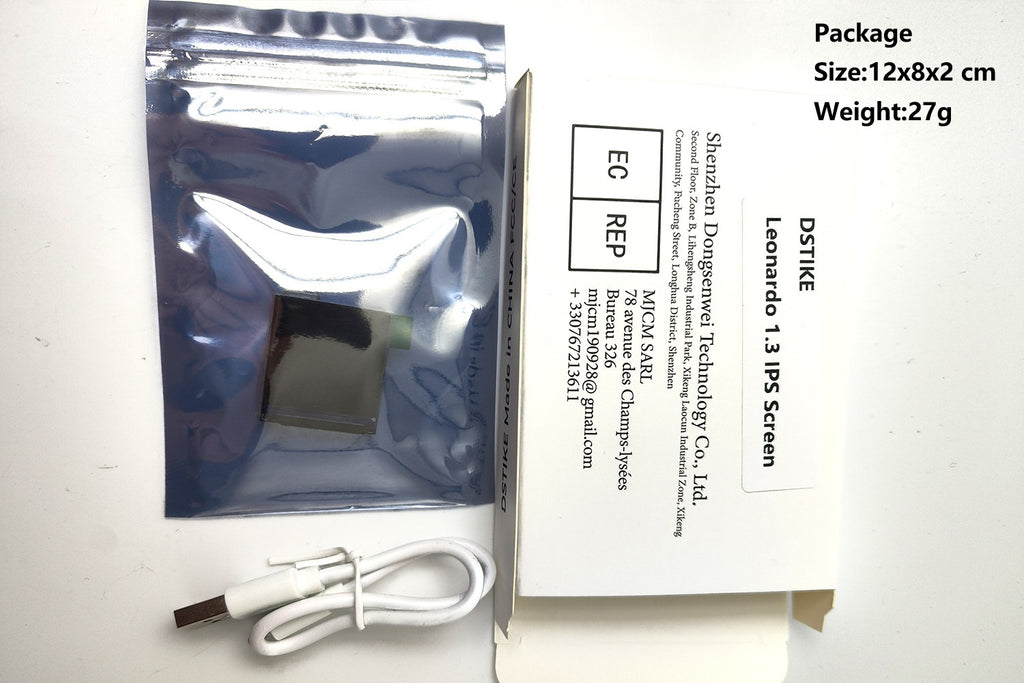

Package Includes:

  • Development board
  • USB cable

Arduino IDE option

  • Board: Arduino Leonardo
  • Library: ST7789 AVR

Hardware Information

  • SCL -> D13/SCK
  • SDA -> D11/MOSI
  • RES -> D9
  • DC -> D10
