DSTIKE Deauher 32 Watch SE(ESP32S3) 2.4G Wi-Fi Attack Security Testing Geek Watch V2

DSTIKE Deauher 32 Watch SE(ESP32S3) 2.4G Wi-Fi Attack Security Testing Geek Watch V2

$89.00

Reliable shipping

Flexible returns

Major Upgrade

  • The 1.54-inch screen has been upgraded to a 1.69-inch one.
  • The power management chip has been upgraded to AXP2101.
  • The GPIO was reallocated and the circuit was optimized.
  • The cross-head screws have been upgraded to socket hexagon screws.

What is it?

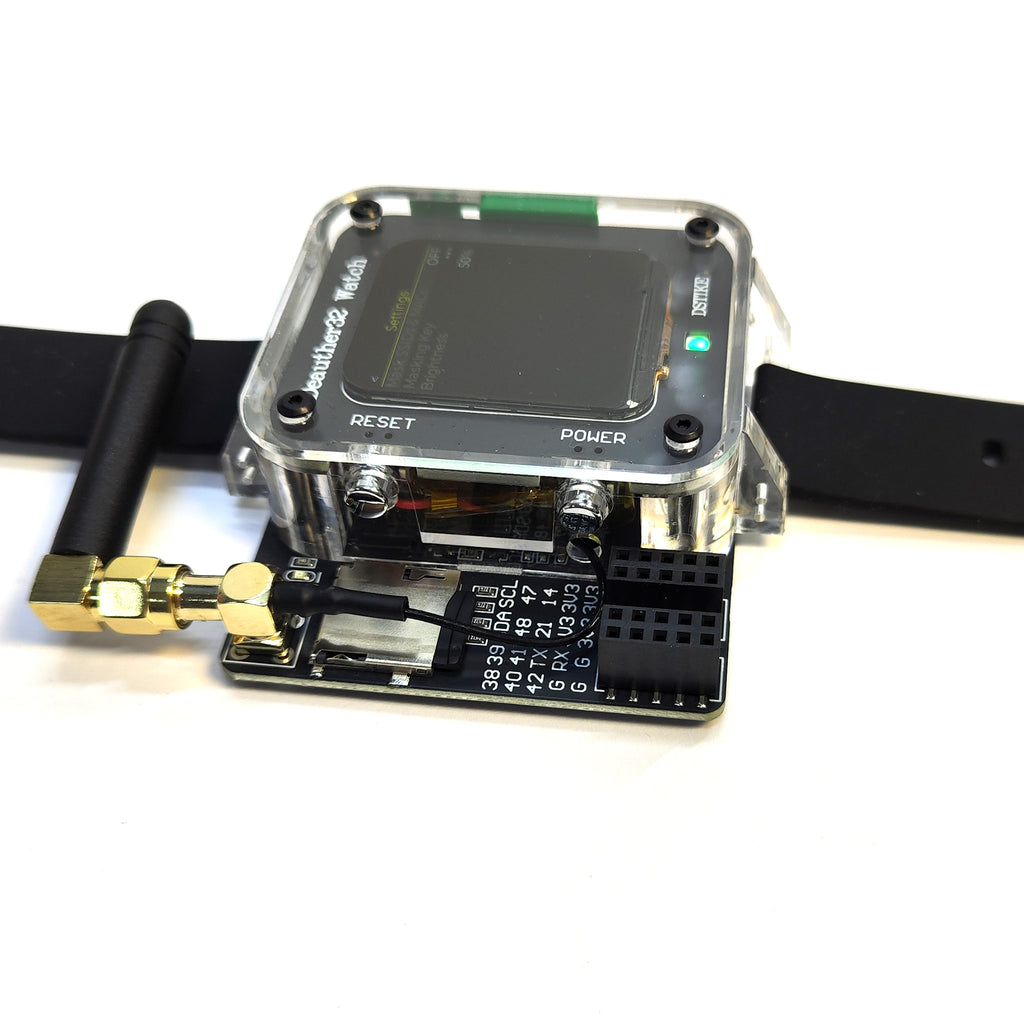

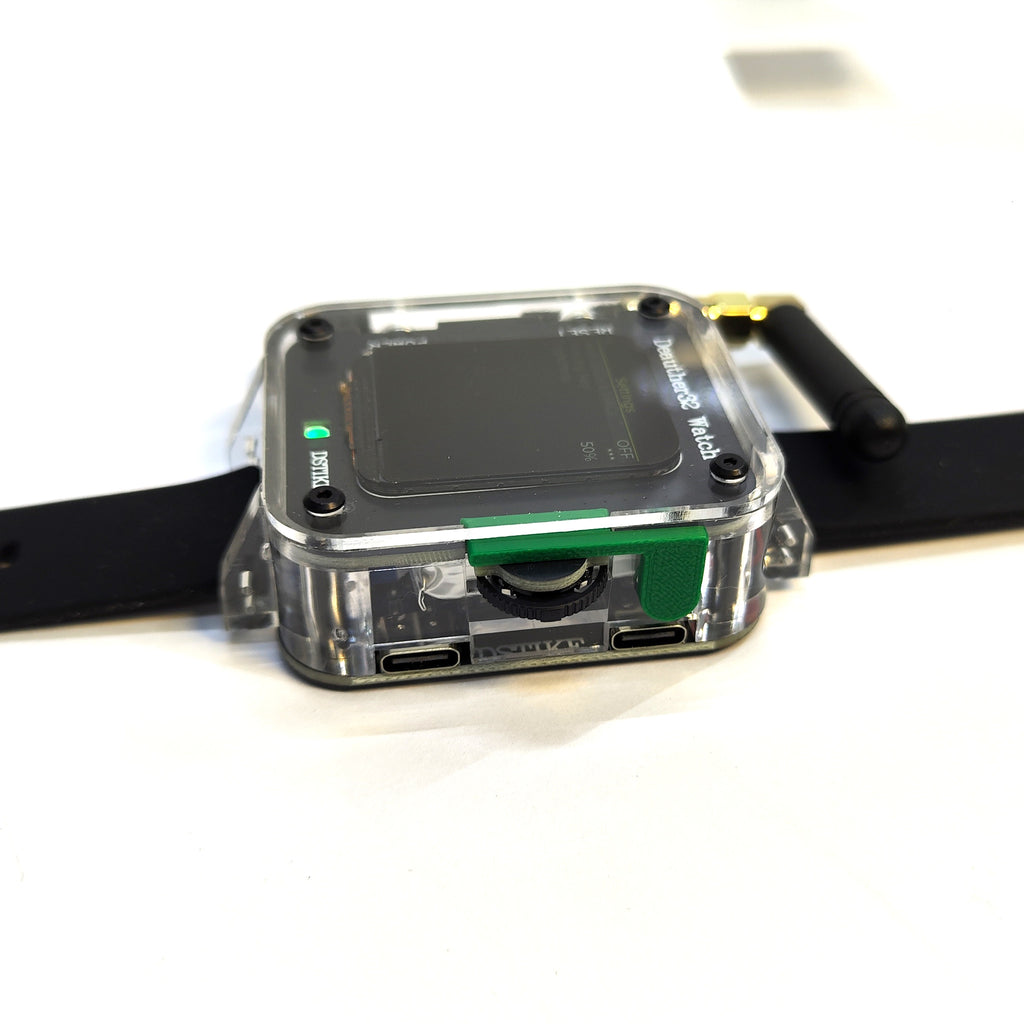

This is a powerful ESP32-S3 Deauther watch that integrates advanced functions, specifically designed for wireless network testing, WiFi security research, and enthusiasts. With the ESP32-S3 at its core, combined with high-performance hardware and a compact watch form factor, it is not only a technical tool but also an innovative attempt in wearable devices.

Why did you make it?

Deauther has always been running on ESP8266. Compared with ESP8266, ESP32S3 has larger memory and faster running speed. Previously, deauthers all interacted through a 1.3-inch OLED. Deauther 32 interacts through a 1.69-inch TFT high-definition screen.

What makes it special?

  • Based on ESP32-S3: high performance, low power consumption, supporting 2.4GHz WiFi and BLE, with strong wireless capabilities.

  • Built-in Deauther program: Supports WiFi testing functions, including deauth attacks (for legal purposes only)

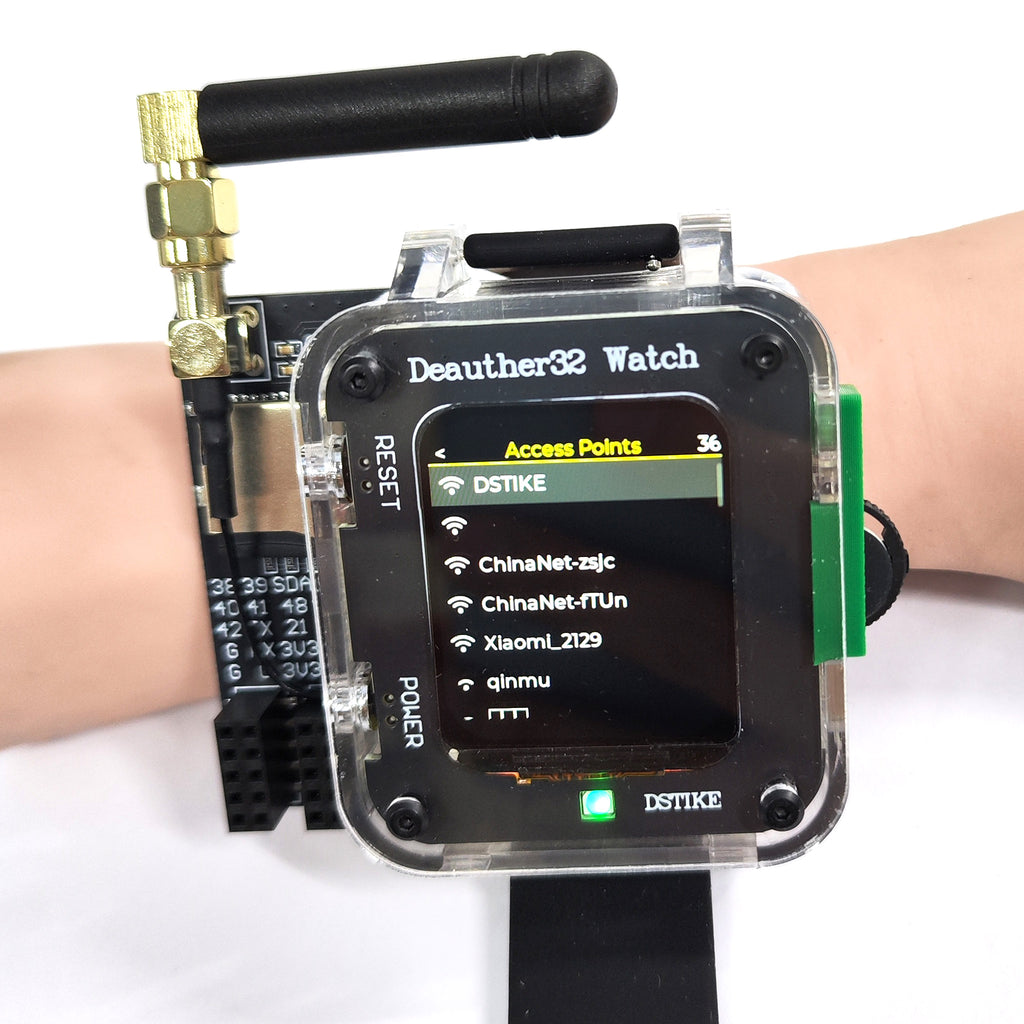

  • 1.69-inch color IPS screen: Clearly display target network, status information, signal strength, etc. The UI is intuitive and easy to use.

  • Multi-button design: Simple operation, natural interaction, convenient for browsing and controlling various functional modules.

  • Built-in real-time clock (RTC) and battery voltage detection: Display time and manage battery power more intelligently.（Function development in progress.）

  • Type-C charging port + 1000mAh lithium battery power supply: portable, easy to charge, long-lasting battery life

  • Open source code/firmware flashing supported: Compatible with Arduino/ESP-IDF, allowing you to freely customize your exclusive functions.

  • Free SD card included
  • Support for connecting more powerful external antennas.
  • Dual USB support(UART and built-in USB)
  • It brings out 13 GPIOs to support various external sensors.
  • The built-in high-precision RTC clock chip DS3231
  • It is equipped with the power management chip AXP2101 suitable for wearable devices.

Suitable for use

  • WiFi Security Testing and Education Demonstration.
  • Wireless Signal Analysis and Experiment.
  • Learn embedded development and Internet of Things programming.
  • The "black tech watch" that tech geeks wear daily

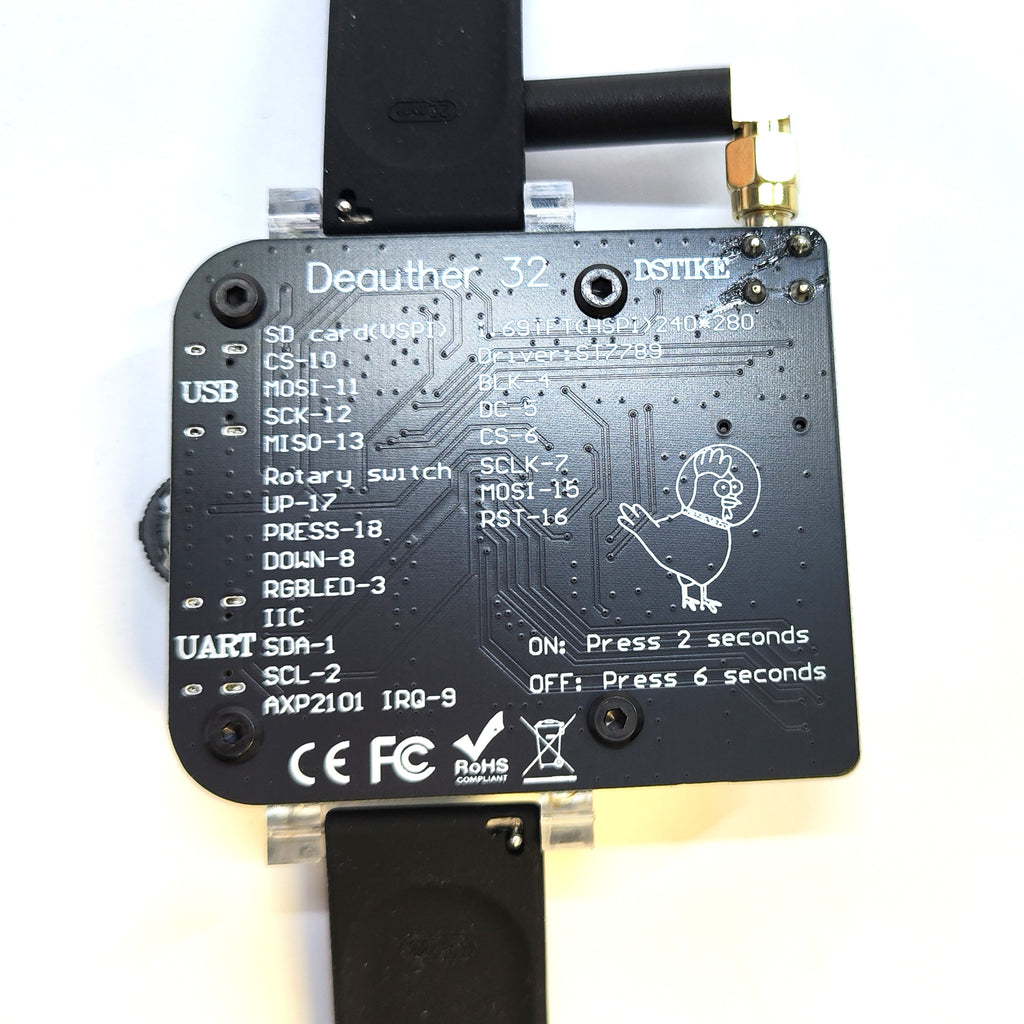

GPIOs and Hardware info

1.69 TFT Display (HSPI240*280)

  • Driver:ST7789
  • BLK-4
  • DC-5
  • CS-6
  • SCLK-7
  • MOSI-15
  • RES-16

SD card(VSPI)

  • CS-10
  • MOSI-11
  • SCK-12
  • MISO-13

Rotary Switch

  • UP-17
  • PRESS-18
  • DOWN-8

AXP2101

  • SDA-1
  • SCL-2
  • IRQ-9

Other

RGB LED- 3

Important Notice

Currently, only 2.4G testing is supported. 5G testing is not supported.

Disclaimer

I designed this development board especially for Spacehuhn's great project: Deauther. It has been authorized by him and is officially supported. This project is a proof of concept for testing and educational purposes. Neither the ESP32, nor its SDK was meant or built for such purposes. Bugs can occur!

This device is intended for educational and testing purposes only. Please use it responsibly and in accordance with local laws and regulations regarding network security and privacy.
