Hardware Specifications

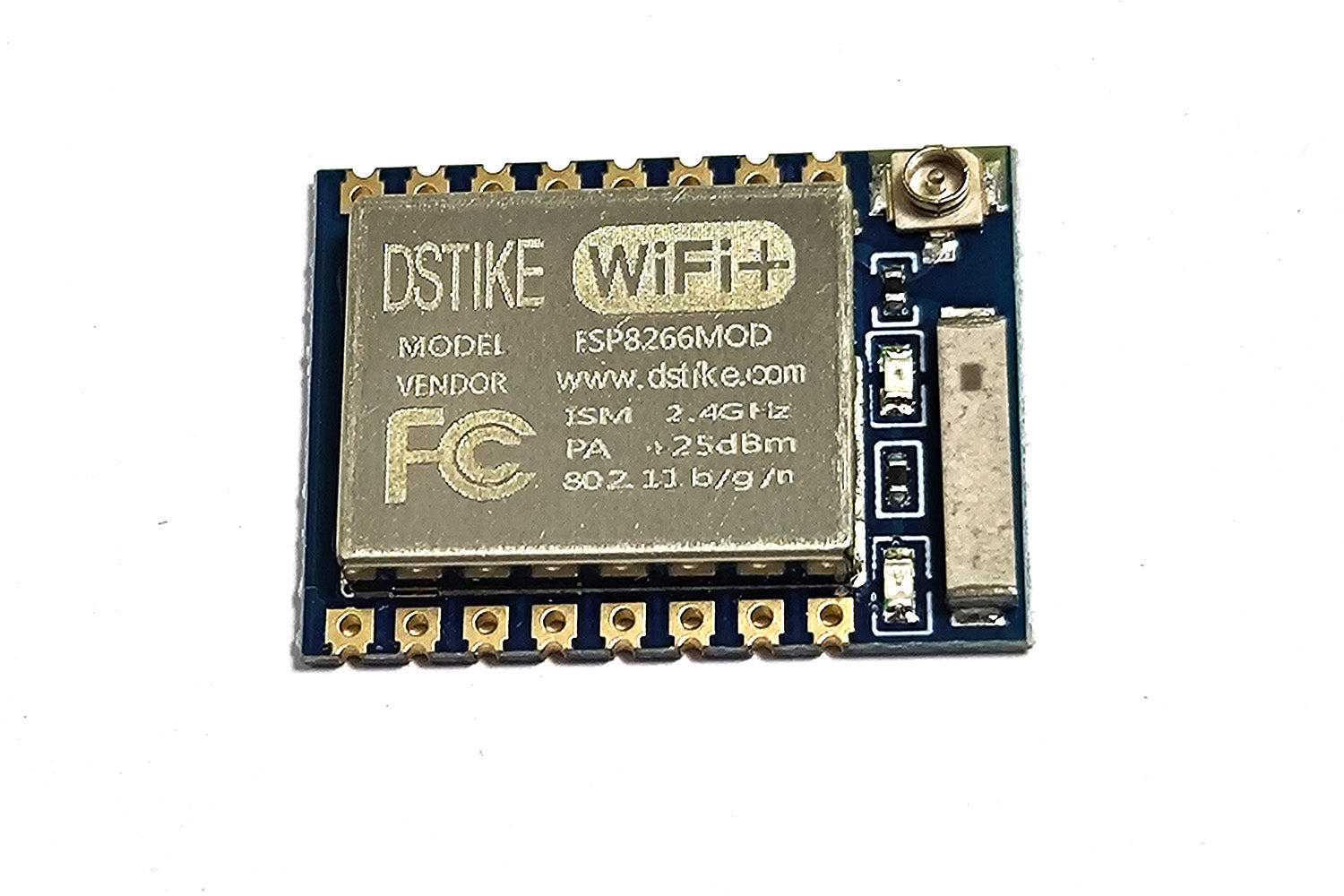

- Core Chipset: ESP8266 (4MB Flash)
- Wireless Standard: IEEE 802.11 b/g/n (2.4GHz band)
- Interfaces: UART, GPIO, SPI, I2C
- Operating Voltage: 3.0V~3.6V (Typical 3.3V)
- Power Consumption: Active Mode: ~80mA (During WiFi transmission)
- Sleep Mode: As low as 10μA (Deep sleep)
- Temperature Range: -40°C ~ +85°C
- Antenna: Onboard PCB antenna (Optional external IPEX antenna)
Firmware Features
####Core Capabilities
- Deauther Attack: Disconnect 2.4G WiFi
- Deauther Beacon: Create fake networks
- Deauther Probe：Confuse wifi trackers
- Packet Monitor：Display wifi traffic
Extended Functionality
Secondary development (e.g., sensor-triggered attack automation).
Application Scenarios
- Network Security Auditing: Simulate wireless attacks to evaluate enterprise/home WiFi security.| Penetration testing for defense mechanism validation.
- IoT Device Debugging:Analyze device behavior under abnormal network conditions (Requires authorization).
- Academic Research:Wireless protocol studies in universities/labs (Ethical compliance required).
Technical Advantages
- Cost Efficiency: 4MB Flash supports complex firmware execution at lower cost.
- Low Power Design: Deep sleep mode ideal for battery-operated devices.
- Flexible Configuration: After being powered on, parameters can be directly configured in the background without firmware reflashing.
- Ecosystem Compatibility: Integrates with mainstream IoT platforms (Alibaba Cloud, Tencent Cloud).
GPIOs and hardware info:
- Display: SH1106 1.3" OLED
- Display SDA: GPIO 5
- Display SCL/SCK: GPIO 4
- WS2812b LED: GPIO 15
- Button Up: GPIO 12
- Button Down: GPIO 13
- Button Select: GPIO 14
- High Light LED: GPIO16
- All ESP8266 pins break out.
Disclaimer
This project is a proof of concept for testing and educational purposes. Neither the ESP8266, nor its SDK was meant or built for such purposes. Bugs can occur!
Use it only against your own networks and devices! Please check the legal regulations in your country before using it. We don't take any responsibility for what you do with this program.
